Hog's firepower display - A-10C - Full makeup


red Dog

Recommended Posts

Friday night I had half an hour to spend at the bench and I decided to punch a few rivets

Bad idea, when you don't have much time you don't do good.

Since the beginning when I work on the nose I tell myself all the time to pay extra care with that super thin plastic around the nose. I did reinforce the internal nose (the area that became almost transparent)  but I concentrated more on the tip of the nose and when I sanded much of the plastic removal also happened back on the sides. In there the plastic was not THAT reinforced.



So too happy to spend some bench time in between helping my better half with the evening preparations, I didn't remind me the above warning.

I started punching rivets around the nose and sure enough I went through badly with a hole much much larger than a rivet :)

I cleared the bench and I went clearing the dishwasher machine instead !



I came back the next day to assess the damage . The mishap happened around the vertical opening, which wasn't very well done anyway.
The internal was thinned as much as possible to have the minimum of plastic thickness after opening the door. The door outline was cut except at the hinges and all it took was forcing the plastic open inside the nose to create that elongated vertical vent. It was so so and very fragile.




Another issue bugging me for a few days was the wrong panel line that I crossed in the image above. This panel line is too low making these two access door way too large.
I initially decided not to correct it because I didn't want to spoil the above vent. I debated with myself to do it or not, knowing perfectly that when it bugs you you have to address it otherwise you only see that fault on the finished kit. It doesn't matter the dozen of guys who don't see it, you do and you know.



So punching that rivet was a a great way out, because now I had no reason not to correct the panel line.



I started by reinforcing the inner wall with plasticard and then I puttied my mess from outside (both the vertical and horizontal vents which was wrong as well anyway). After the initial sanding, I applied cyanoacrylate over the putty and sanded again. The mammoth rivet hole was fixed.

Why Cyano than finishing with putty: it engraves much better

Why not using exclusively cyano then? Well mine is too liquid, and it would have required many applications cycles.
Since the putty sag a bit anyway it creates the perfect recess for a quick dry of the cyano which can then be sanded smooth very quickly.

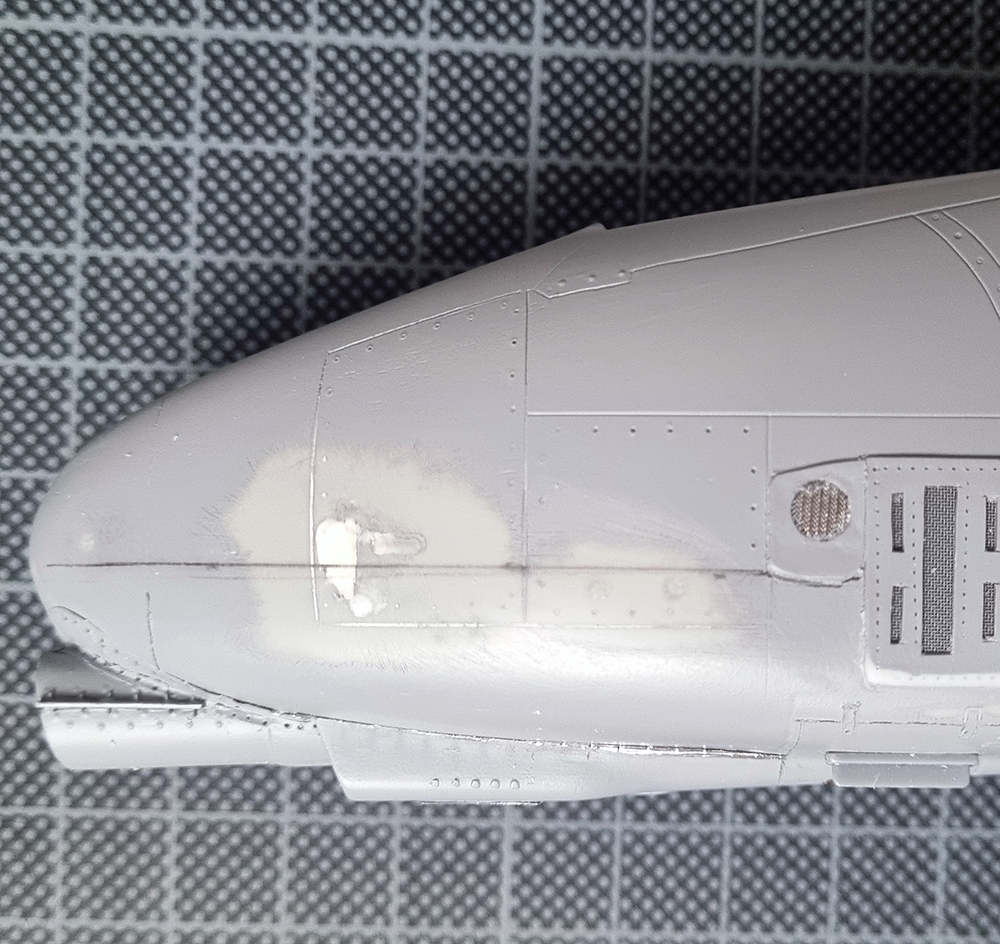

The wrong panel line and rivets were filled and the two round bits of the battery door were removed to be replaced later.
New panel line was engraved and new rivets punched. I had now enough room to engrave that small panel door under the battery compartment. Sure enough the back line needs to be redone.

You have never finished with engraving, as long as you refuse to stick the template correctly so IT DOES NOT move :) Call me donkey.

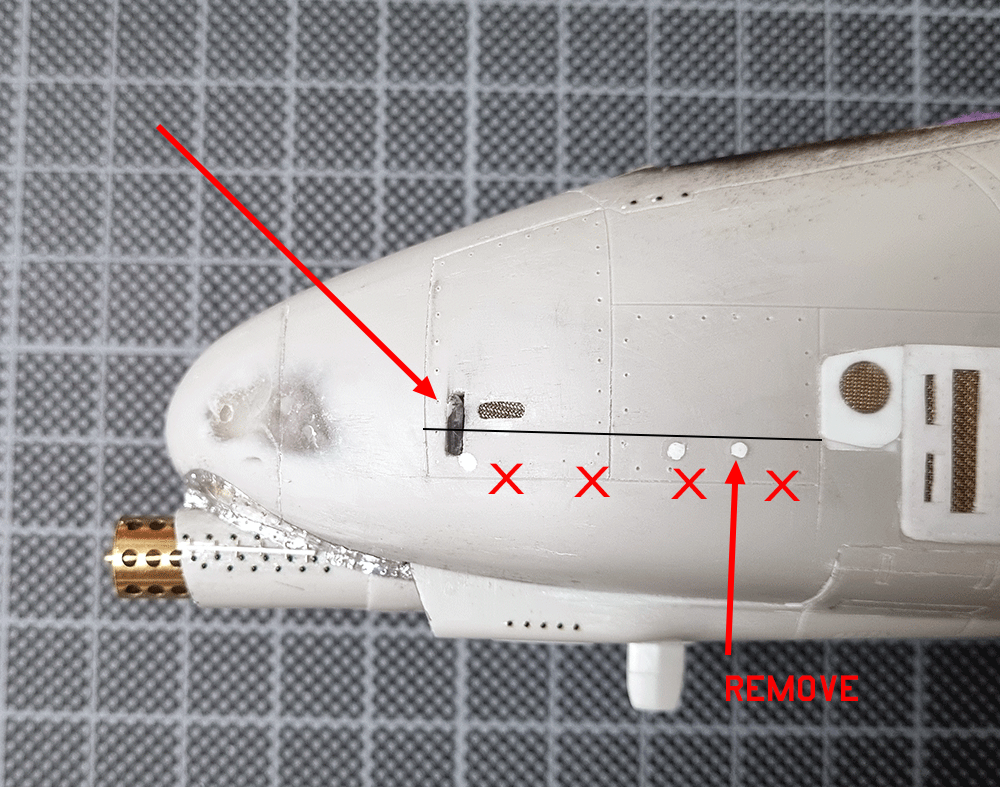

I haven't yet done the new vertical door. I marked the new location. But I hesitate to drill it. I might use a decal as a trompe l'oeil instead.
The horizontal vent was okay for the previous life of the A-10 but was changed to a door with the latest update. So I'll just engrave the correct door. That one was bugging me too, so in the end I'm glad I punched that mammoth rivet after all :)

Typical case of a needed great mistake !!

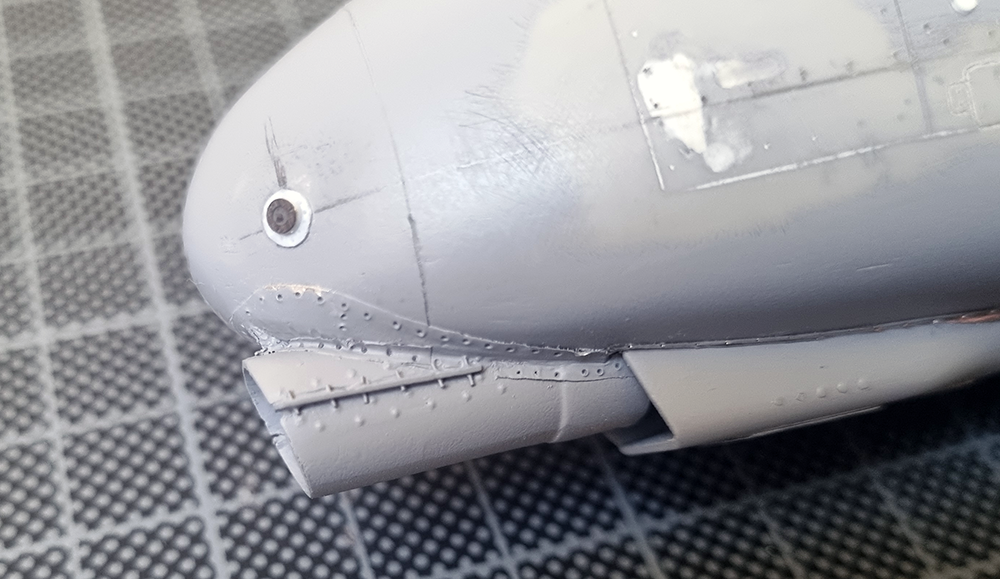

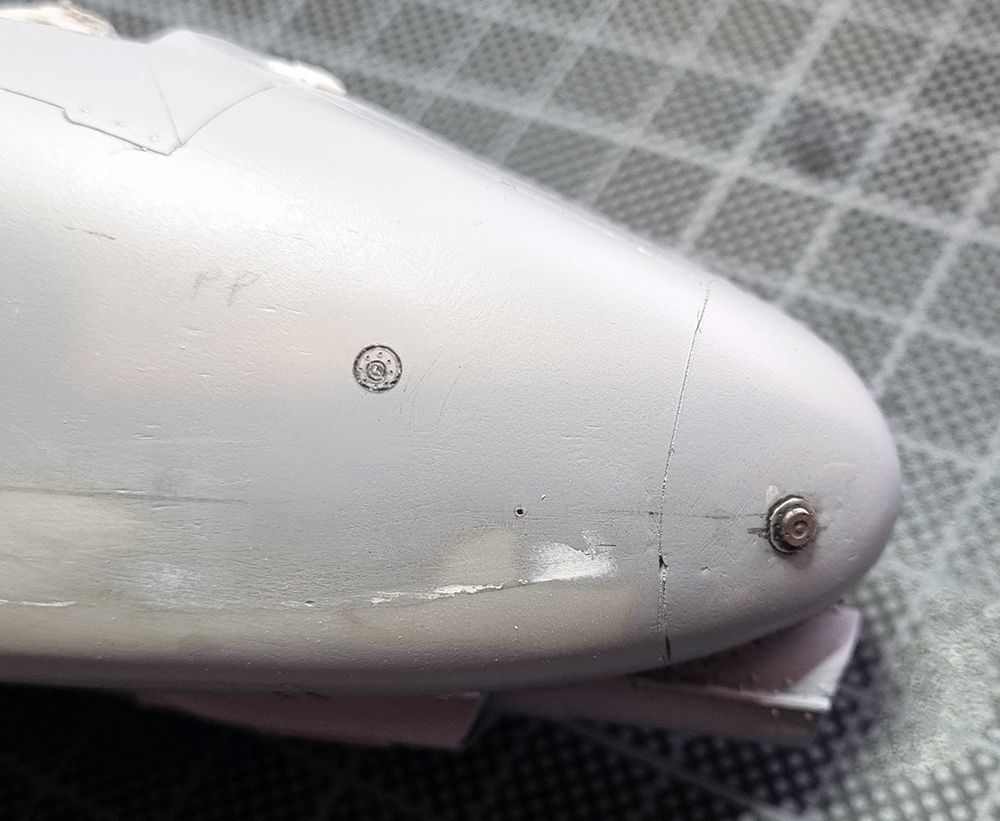

I then placed the 2 nose ALR-69 antennas. I started with the left one on the extended new panel line.
It was made by gluing first a 0.3mm plasticard disc (diameter 3.5mm), sanded it thinner and then punched rivets on the edges (don't push too hard)

Then  I glued a thicker 0.5mm plasticard disc (diameter 2mm), sanded it downward to give the sensor the proper angle (which is barely visible)

then I added a small PE part of the same diameter. These were found on the F-16 ladder Eduard PE set. There are many so I can use them as well for the remaining AN/ALR-69 antennas.






The same process was performed on the other side, hopefully located at the same spot (which is easier said than done).


I also drilled a hole for the ground pin, it will need a decal and engraved the deicer fluid access panel.
Some correction are needed on that nose panel line.



Next :
relocating the ventral strakes closer to the wings

Thanks for checking in.





Edited by red Dog
Link to comment
Share on other sites

  • 2 weeks later...

Love this community. It's full of help from all directions :)

Many thanks Jake, Harold and Erik and Thierry and Chuck for all the help you guys provided. I'm grateful and honored to be part of this community.



As per the A-10 tweak list and Chuck's earlier remark, I dealt with the ventral strakes.

They are too small and misplaced.



The location is rather easy to address. They need to be just under the wing and moved aft by about 4mm.
The size issue is more complicated to address and IMHO not worth the very small benefit. So I will accept that compromise.



The parts also suffer from pin marks on their inner face and the large rivets holes are recessed where they should be positive (and large) rivets

So all these were first filled with putty.




The inner face with two very visible pin marks

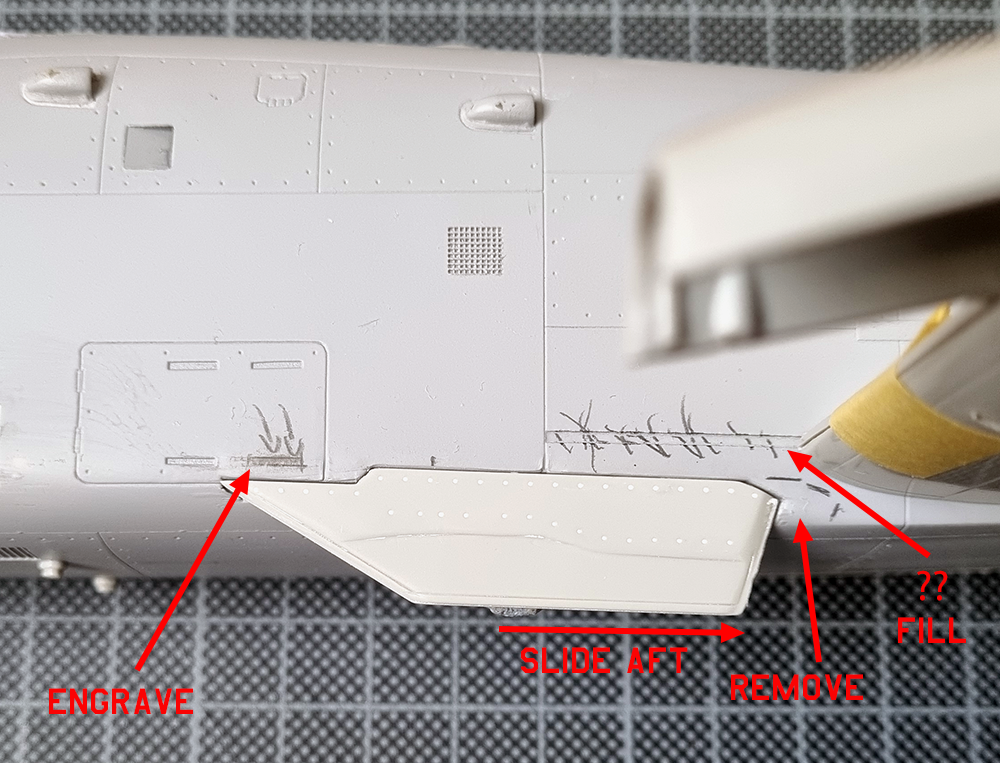

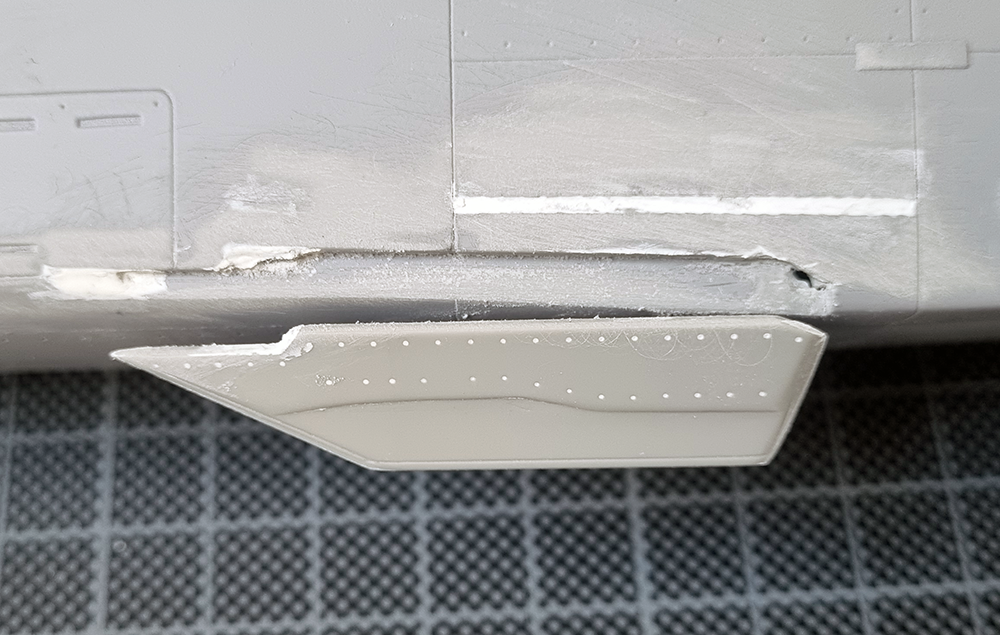

I marked the new location of the strake. All it takes is to remove a bit of plastic as per the  aft strake contour under the wing. This is done with the proxxon milling machine
I really don't know what is that trench just forward of the wing. One thing is sure: it shouldn't be there so it was filled. Panel lines will be engraved instead in that area as one rather large access panel is missing.
The forward door misses one recessed area as well, this will be corrected by engraving a new one.

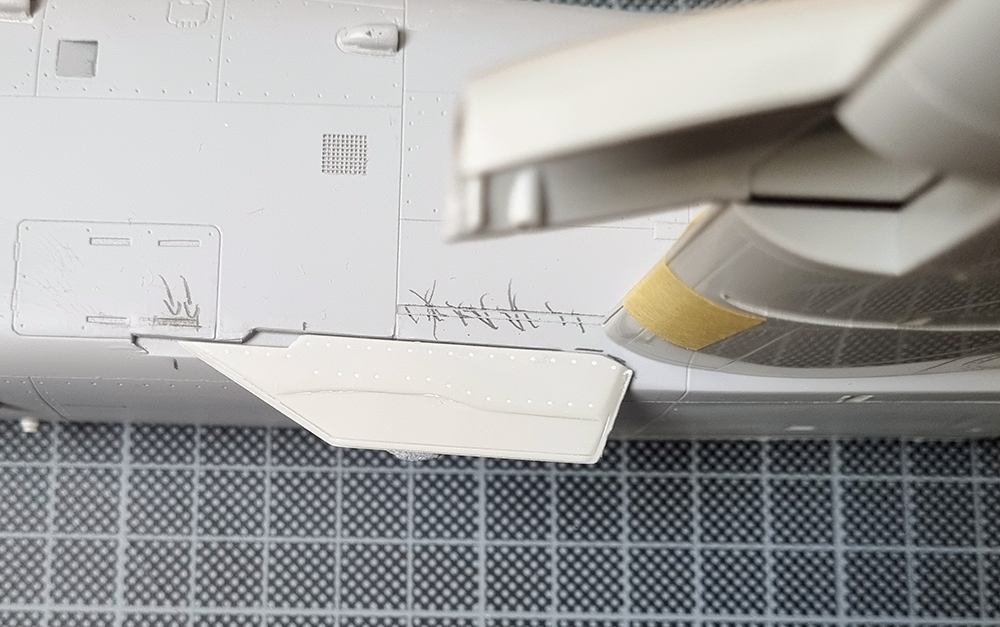

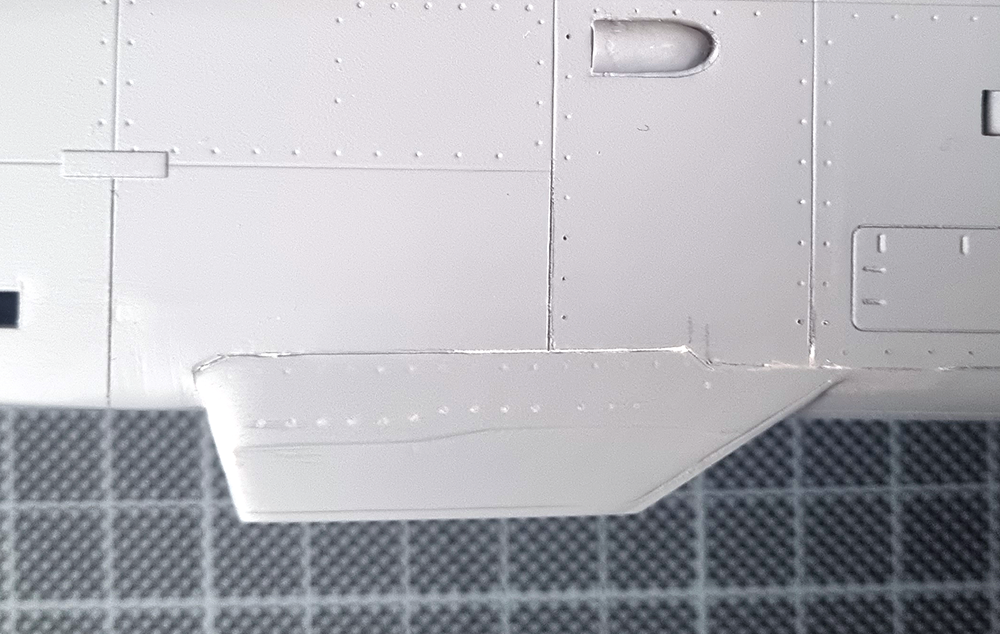

The strake in its new place. I was wondering if the wing was not too high on the fuselage, but it seems it's perfectly located. It is indeed the strake that is smaller than it should be as normally the top aft of the strake should be in contact with the leading edge of the wing. It won't be much visible once completed.

Moving the strake aft provides a lot of added value though.




The hardest part is filling the forward and central recessed area with putty and superglue.

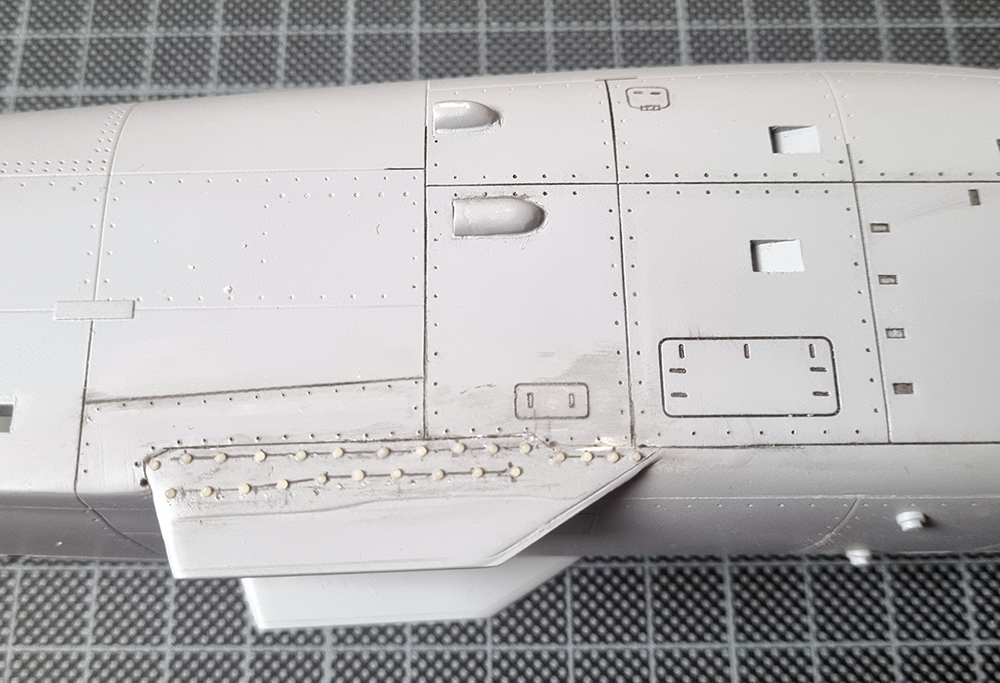

More work needed to hide the rivet holes but the part is mated in place

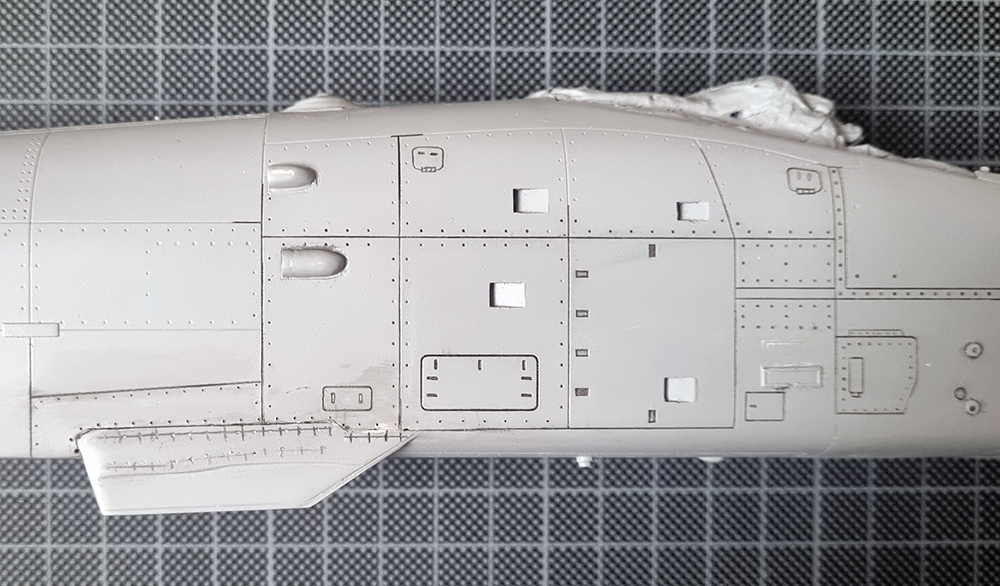

The small missing door and the aft oblique kinda access panel have been engraved. I started marking the position of the positive rivets.




I'm playing with different positive rivet solutions which I will develop later on.
Here's the current test session with single rivets created with a silicon green stuff mold.

These are a bit too large. But the effect seems satisfactory. I'll probably paint them and maybe sand them a bit down before deciding if I stick with them or not.



Thanks for following.

Link to comment
Share on other sites

  • 2 weeks later...

I am now officially a rivet counter :)



And the big guys just do the same as we do btw:

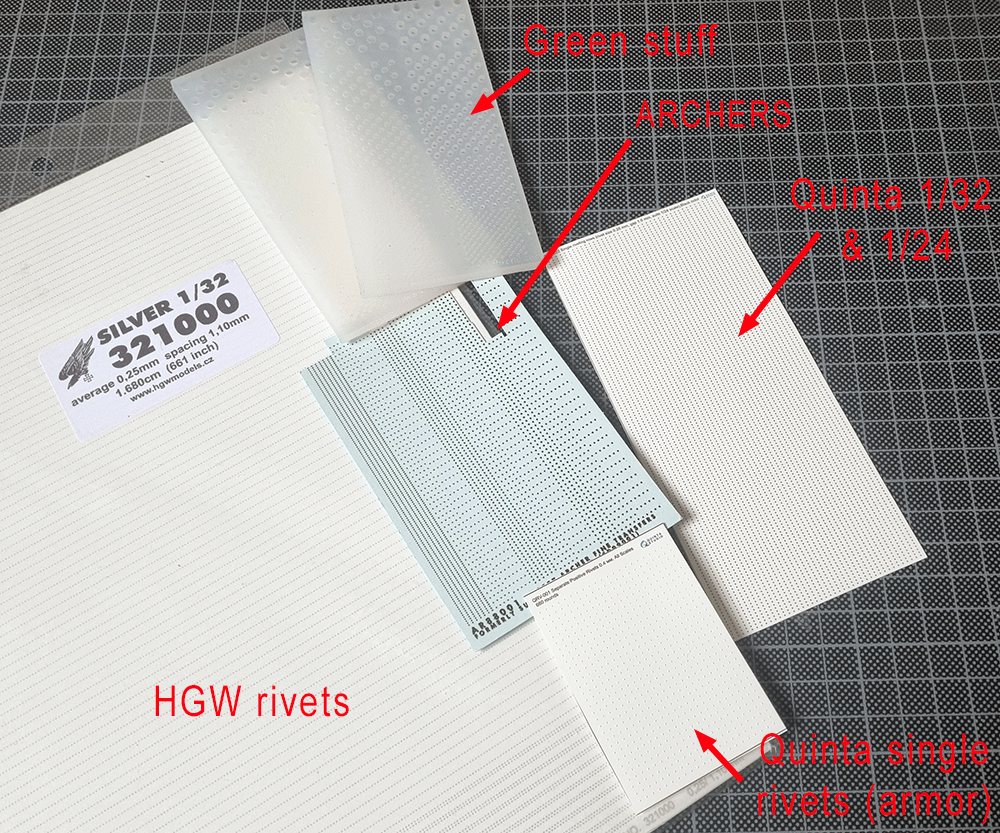

So let's talk about rivets



You don't start this model unless you're ready to cope with A LOT of positive rivets

Even if you do not want to correct Trumpeter rivet patterns mixing positive and recessed rivets  -  you will destroy some positive rivets while sanding and thus will need a rivet solution to replace them.

The good news is that it stops where you want and if you want to go 100% correct, it will never end :)



I decided to go as far as I can because the Warthog is anything but smooth and I want my model to pass that message, even if that means sometimes I have to exaggerate the scale effect.
Most of the Trumpeter's positive rivets are on the aft fuselage and tails. Most of the front fuselage have recessed rivets. The real airplane has positive rivets all over the place, including on the top fuselage behind the canopy.



I actually never used positive rivets before, I always punched rivet lines instead. So this is a first for me and my level of experience is very low.
View the following comments from a rather inexperienced first time user:


As a consequence of punching rivets rather than decaling rivets, I never sourced many positive rivets and with the closing of Archer's rivets I beat myself every Sunday since starting this A-10 :)

Luckily I had a very small sheet of Archer's rivet in the stash as well as 2 huge HGW A4 rivet sheets. All are suitable for 1/32 with different spacing options

Being aware of the difference between Archer's and HGW's I knew I needed to source alternative rivets. So I went shopping.



I sourced different size Quinta rivets apparently new on the market. I bought 3 different sizes: 1/32 & 1/24 sheet rivets (black) and 1/35 (armor) single rivets (white)

So I have multiple rivets solutions to try out with this build allowing me to vary sizes and spacing (which I found a nightmare to define)






I also sourced silicon mould for making my own rivets from Green stuff.

I filled the smaller options with Tamiya light curing putty to create two types: Dzus and regular rounded rivets






The results are quite big for 1/32 scale. they are too tall and need to be sanded smaller which is time consuming doing piece by piece - no way !!
I'll use a few of them but in very limited quantities. It was worth trying. (I did just above with the ventral strakes) the Dzus option brings some interesting options (see conclusion's next post)



The area I will use as a testbed for all these rivets solution is the top fuselage right aft of the canopy. That area has been heavily updated on A-10s over time.
Trumpeter lacks many details for a modern era A-10 and many preliminary corrections are needed.

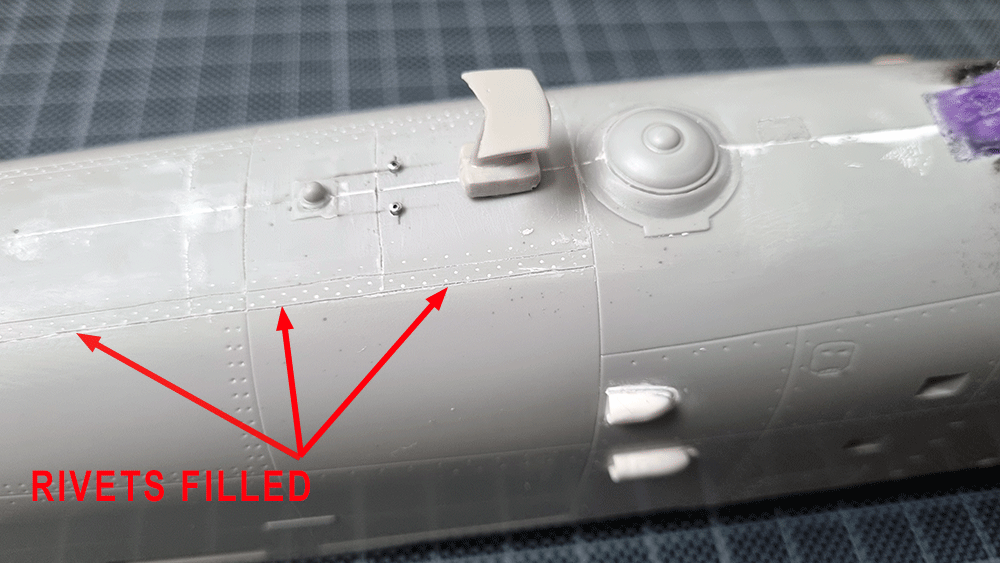

  • As said above, all rivets on the front fuselage are recessed. In this area, we need positive rivets instead, so the fuselage rivets will be filled with putty.
    Multiple passes are required to counter balance the usual shrinkage of the putty.
    I tend to more and more use water based putty as you can use it without sanding by simply wiping the plastic smooth. You still need multiple passes but anytime I can avoid sanding I don't hesitate.

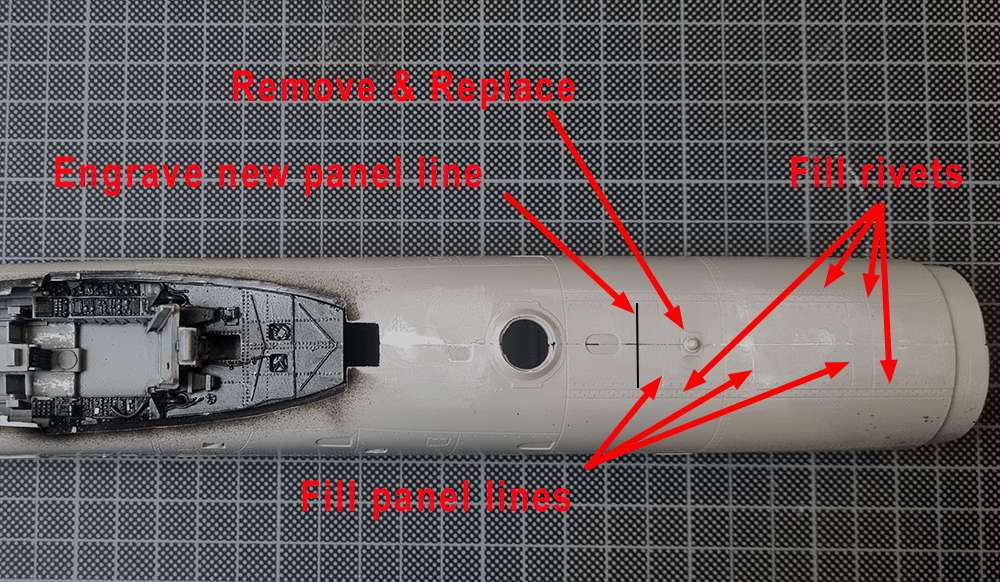

  • Some panel lines are wrong as well. The one before the anti-collision light should be replaced closer to the antenna (to the front)
    one of the two double lines aft of the top fuselage needs to be filled.

  • Trumpeter does not provide the formation lights in front of the smaller blade antenna. Eduard provide these but they got it wrong. (see below) the long one should be on the right and not on the left as they did...

  • Modern A-10s have a Winnebago type antenna replacing the larger blade antenna offered by Trumpeter. This one was sourced from AMS with the A-10C IP and glareshield. Super glad I have that one. Many thanks again Harold.
    I will just scratch a support plate which is riveted on the top fuselage with 4 big bolts

  • The NVIS lights (2 tubes) are absent and added with Metal tubing just aft of the Winnebago antenna.

  • The Trumpeter anti collision light is cut from the fuselage and will be redone with sheets of plasticard. It prevents the fuselage to be sanded smooth correctly.
    Beside it needs to be relocated further aft alongside the panel line. Late Warthog also have an oblong light rather than a dome light.

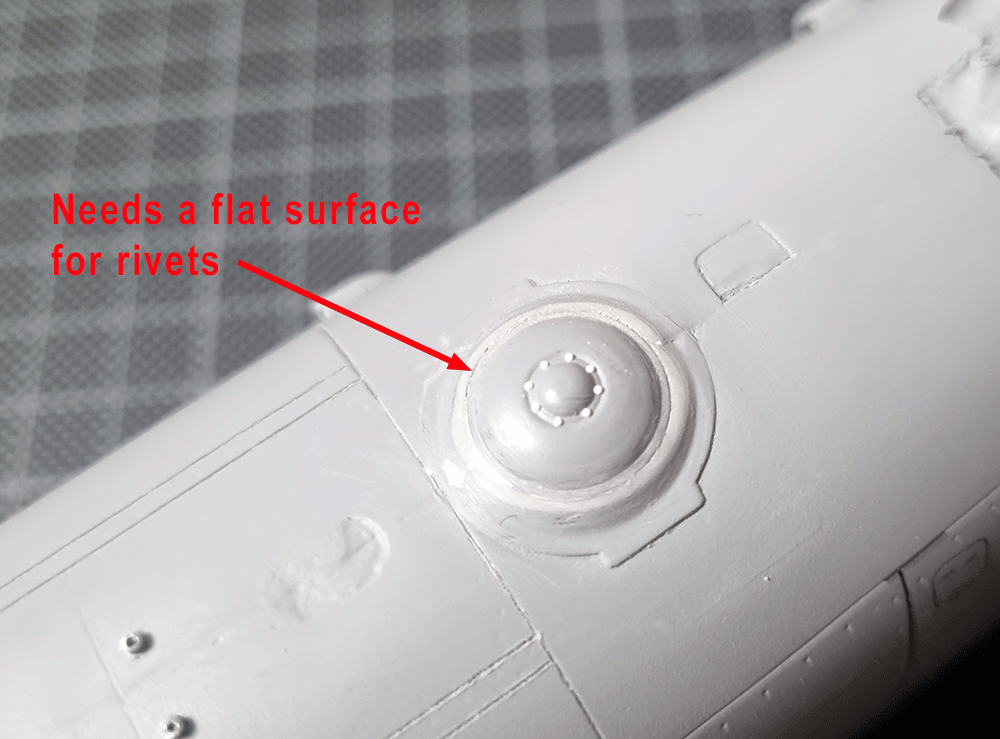

  • The GPS dome is nice but lacks many rivets and is a pain to sand flat where rivets need to be added. Especially at the junction between the dome and the fuselage hole sides. Some moulding marks also need to be sanded smooth on both side of the fuselage (a bit below) the dome area.


  • Two reinforcement plates on top of each other need to be added on the left side of the dome. These were added with 0.3mm styrene sheet sanded thinner once glued in place.



Once all that preliminary work has been completed, we can start looking at adding rivets:

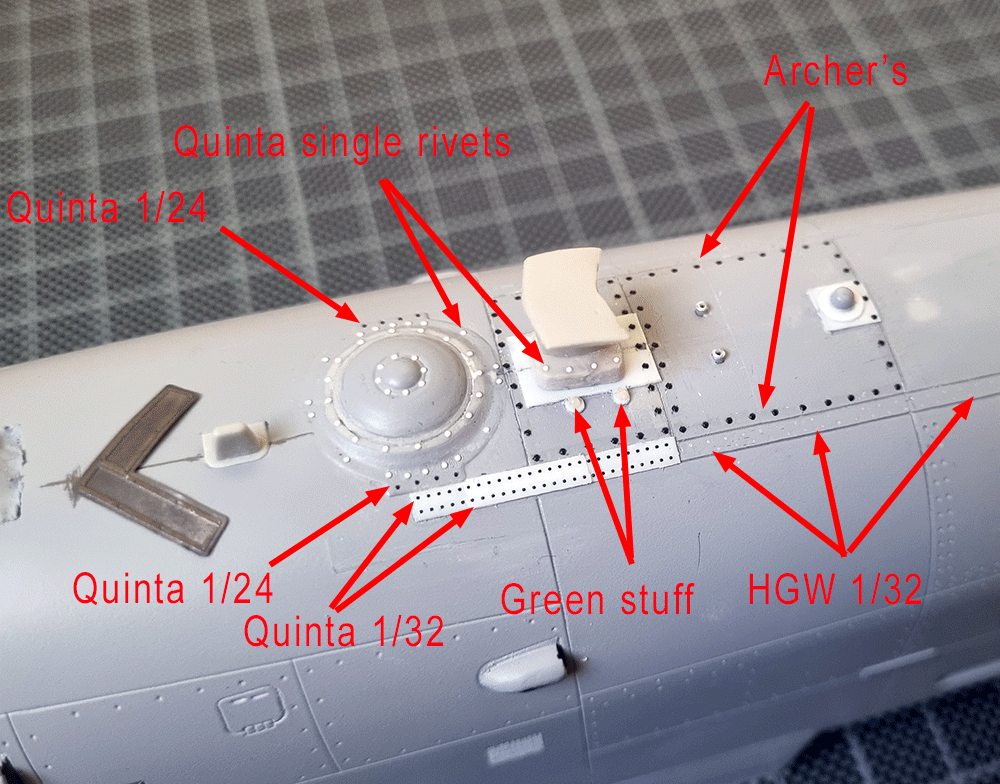

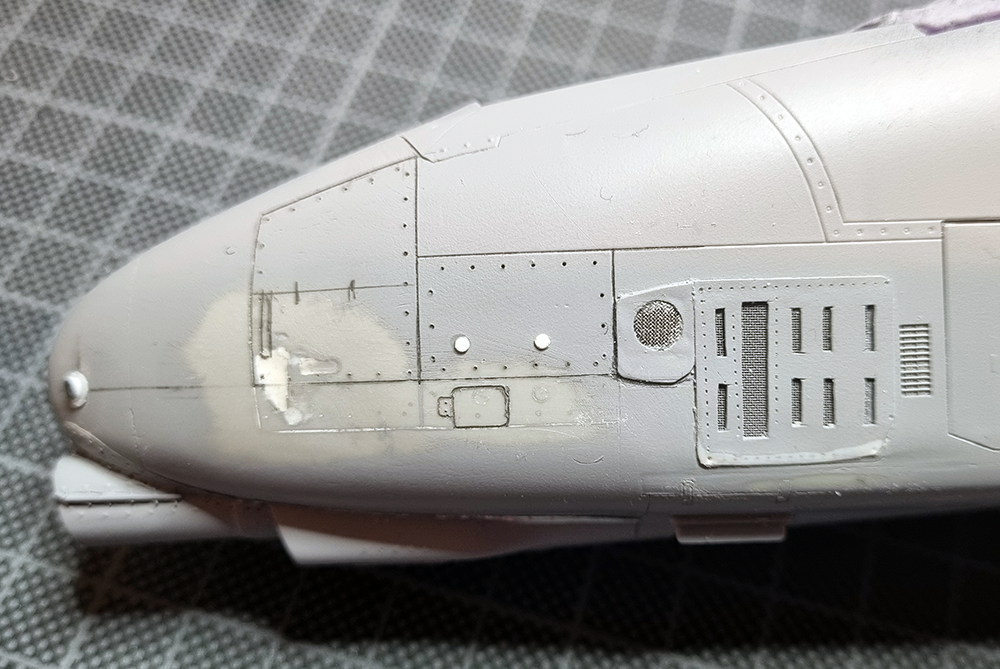

lots of things to say about that picture:

  • The dome was populated with Quinta 0.4mm single rivet(. Like all other positive rivets they are detached from the carrier film by water. the difference is that you always get a single rivets and you don't need to cut a line or a pattern like the other solution.
    That means you have to work rivet by rivet.
    That also means the contact surface is very small and sometimes they refuse to stick.
    Normal operation is to apply a setting solution once the rivet is in place. I used both MicroSol and Daco Strong solution. multiple drops of the decal solution to ensure the rivet stick. When not satisfied, a quick drop of Tamiya super liquid cement was used

  • Note the wrong Eduard formation light, the long one should be opposite ...

  • The forward kit blade antenna support needs to be sanded way thinner so the top surface is smooth with the fuselage. Otherwise you'll have a huge ugly step.

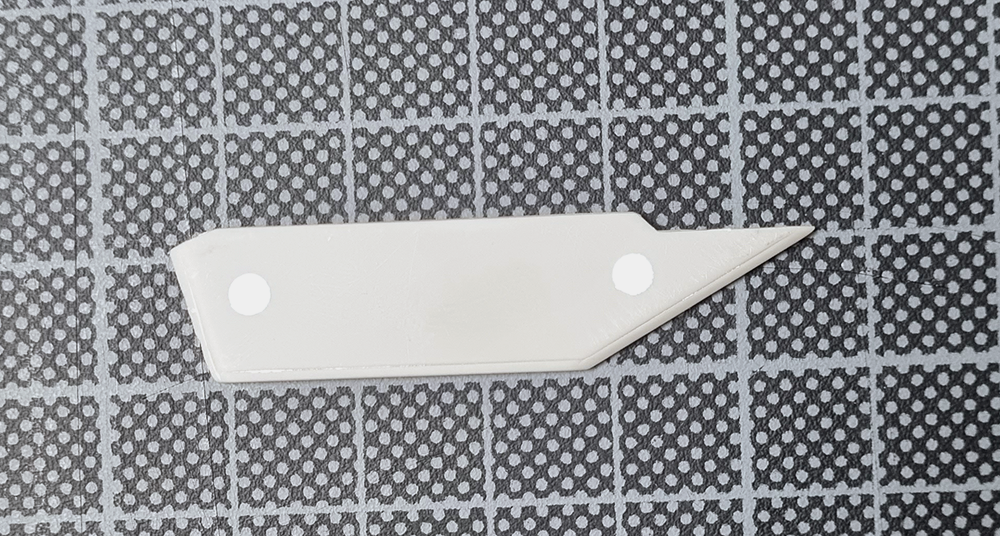

  • The support plate of the Winnebago antenna was cut to shape and I used 4 giant rivets from Green stuff moulds to attach the plate to the fuselage
