1/18 scale Wallis WA-116 Agile autogyro 3D printed / scratchbuilt model

[Nick_Karatzides]

1/18 scale Wallis WA-116 Agile autogyro 3D printed / scratchbuilt model

The following construction is a tribute to RAF Wing Commander Kenneth Horatio Wallis DSO MBE CEng FRAeS PhD, a pioneer gyrocopter aviator, who passed away early on Sunday morning, September 1st 2013. Ken was 97 years old. During the WWII, Wallis served in the Royal Air Force as Westland Lysander and Wellington pilot and flew 28 bomber missions over Germany. After the War, he flew the massive Convair B-36 and later involved in research and development, before retiring in 1964. He later became one of the leading exponents of autogyros and earned 34 world records, still holding eight of them at the time of his death. He was an inspiration to us all and we shall greatly miss him. A local hero and a national treasure.





He was born on the 26th April 1916, at Ely in Cambridgeshire. With his father and uncle having built an aeroplane in 1908 to fly the channel in a competition that was eventually won by Louis Bleriot, Ken Wallis acquired an interest in practical mechanics at an early age and by the time he was eleven years old had built his own motorcycle. He eventually turned his attention to aviation following a flying demonstration he watched in 1936 of the Henri Mignet HM-14 Flying Flea / Pou Du Ciel.


Ken will be greatly missed by the Flixton museum members. He was a frequent visitor, generous fundraiser and a great ambassador. In addition to the numerous professional institutions who welcomed Ken as a member and the vast number of clubs who regarded him with great respect and fondness, many ordinary people will also feel a loss in one way or another. Even a short chat with him left the individual feeling that it was something special and his warmth made them feel that he would remember them! Ken was recognised wherever he went. Admirers would soon gather and he would usually produce a small clipboard from a pocket, to sign and give away autographed postcards of him flying the 'Little Nellie'. I am sure that many a childless adult has asked for a card to give to their 'offspring'. Ken was inspirational, a great role model and possessed a rare old-world charm plus the impeccable manners of his age; all without a hint of grandeur. I am not alone in thinking that he was probably the grandfather figure we would all have liked to have had at some time. Norfolk was Ken's home from 1963 and I venture to think he was appreciated by such a large part of its population that he was likely a close second to its most revered inhabitant: Horatio Nelson.

Goodbye Ken - our gyrocopter aviation hero and national treasure.




Edited May 21, 2022 by Nick_Karatzides

[Nick_Karatzides]

CHAPTER I - Little Nellie only lives twice

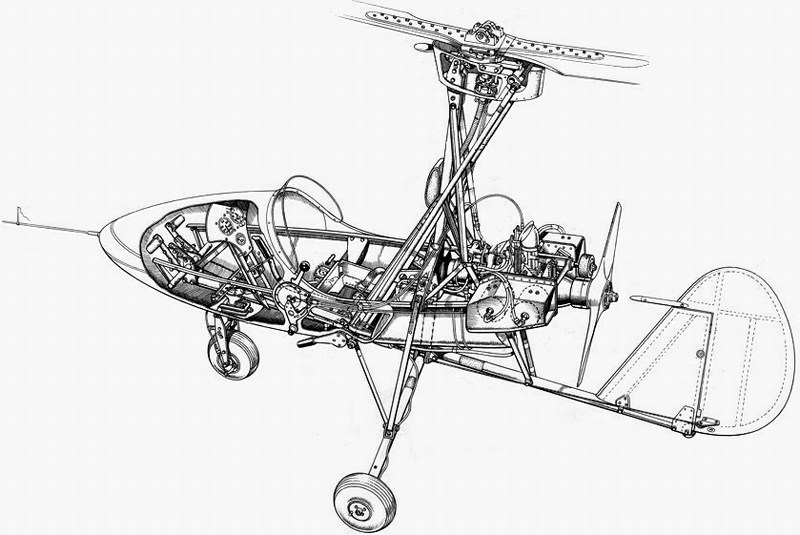

The autogyro differs from the helicopter in that it has a upwards thrusting propeller and a second prop to drive the forward. The gyro's upward's prop lifts air much the same as a glider. The autogyro's roots go back in 1921 when it was invented by Juan De la Cierva, when he was looking to develop a light and fast bomber for the Spanish military. Development continued over the years and during WWII both Germany and Japan built their own autogyro versions. Wallis Autogyros Ltd was founded in 1961 by RAF Wing Commander Kenneth Horatio Wallis and has produced an extremely wide range of special purpose autogyros. The Wallis WA-116 Agile created by Wallis runs on the same principles as that built by Cierva but it much smaller and more nimble. The first prototype, registered G-ARRT, was a single seater ultralight autogyro first flown on 2 August 1961 and being developed with different models over the years, with such uses as military training, Police reconnaissance and survey work. It could lift twice its own weight, fly 210 km/h and rapidly climb to 4100 m, even though it weighed 110 kg. This aircraft could take off in 30 yards of space at a minimum speed of approximately 20 km/h. In 1962, five WA-116s were built by Beagle Aircraft at Shoreham, three of which were for evaluation by the British Army Air Corps.

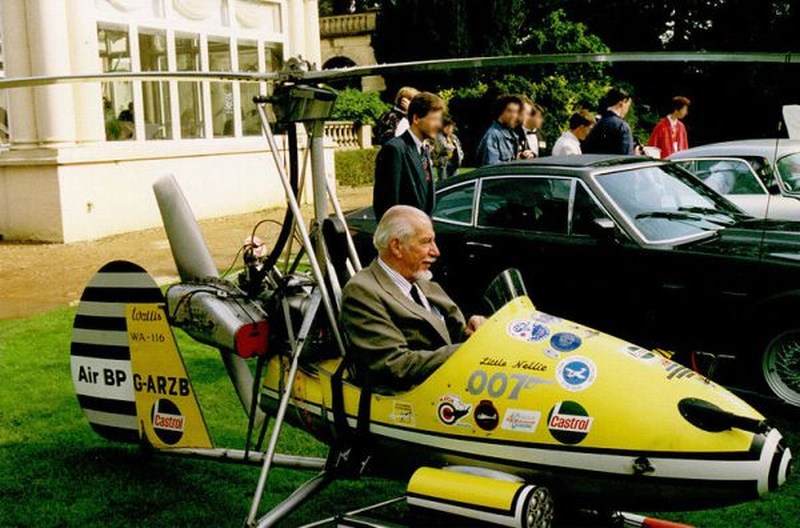

In 1966, one of the Beagle built WA-116s, registered G-ARZB (nicknamed as 'Little Nellie'), was modified for use in the 1967 James Bond film 'You Only Live Twice'. Few Wallis autogyros have been operated privately, with nearly all of them being used for research and demonstration flying by Ken Wallis himself.


The Wallis WA-116 Agile was powered by a McCulloch Model 4318A four cylinder horizontally opposed air cooled engine, providing a top speed of 185 km/h and a range of 225 km. After building nine single seaters, the construction of a two seat variant the WA-116T was begun in 1969; Ken Wallis tested a four blade rotor and finally produced the WA-116F with which he won the closed circuit world record in 1974 in the 670.26 km category. Wallis autogyros have been powered by various types of engines, within the range 72 hp to 160 hp (the latter is used in the two seat Wallis WA-122) and have been employed for research programmes, including one promoted by Sperry Radar. In 1983 development of a production version, powered by a Weslake engine, was under way in association with Vinten Ltd. Intended primarily for paramilitary use, including policing and survey work, the definitive aircraft is due to be certificated in 1984. Ken Wallis, developed a number of improvements to the autogyro design, including the offset gimbal rotor head which gives the autogyro hands-off stability.


Technical data & general characteristics:

• Type designation: Wallis WA-116 Agile,
• Manufacturer: Wallis Autogyros Limited,
• Usage: Reconnaissance / recreational autogyro,
• Crew: 1 pilot,
• Year of first construction: 1961,
• Year of first flight: 1962,
• Country of production: United Kingdom,
• Length: 11 ft (3.38 m),
• Height: 6 ft 1 in (1.85 m),
• Rotor diameter: 20 ft 4 in (6.20 m),
• Empty weight: 255 lb (116 kg),
• Gross weight: 550 lb (249 kg),
• Maximum speed: 100 mph (161 km/h),
• Rate of climb: 1071 ft/min (5.44 m/s),
• Service ceiling: 10000 ft (3048 m),
• Range: 130 miles (209 km),
• Flight endurance: 2.5 hours with 58 lb fuel,
• Powerplant: 1 x Wallis McCulloch 4318A piston engine, 54 KW (72 hp).



Edited May 21, 2022 by Nick_Karatzides

[Nick_Karatzides]

CHAPTER II - Converting Mbytes into actual model parts



Before start building a new scale model, I always try to study as much as possible the object of construction. Any available technical manuals and detailed walkaround photos, always help during model building process. As previously described into my previous WIP (feel free to have a look on the 1/18 scale Instytut Szybownictwa IS-A Salamandra 53 scratchbuild model already uploaded into the present forum), the plan is to design a CAD file and then print it, on a 3D replicator. This method, helps a lot and gives the opportunity to scratchbuild almost anything, under any scale, within only few minutes. The 3D printing technology introduction into scale modelling and free access to the average modeller is a great evolution in the hobby and a creative tool that helps us to build better and more realistic models. Certainly the new technologies and gadget tools in the hands of talented enthusiasts open new horizons and provide wide potentials on scale model building.

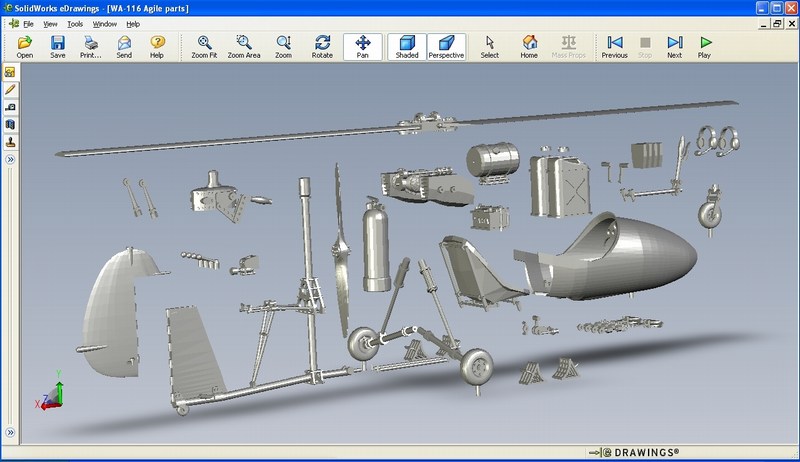

It took a couple of hours of CAD work on my laptop, to 3D design, scale into correct 1/18 size and then digitally cut the autogyro's compartments into virtual pieces, having always in mind that the later printed parts, should perfectly fit and finally become a fine scale model. And voilà, we have a winner! A new Wallis WA-116 Agile autogyro virtual model, is ready to be forwarded to the 3D printer and become an actual object under 1/18 scale, within short time.

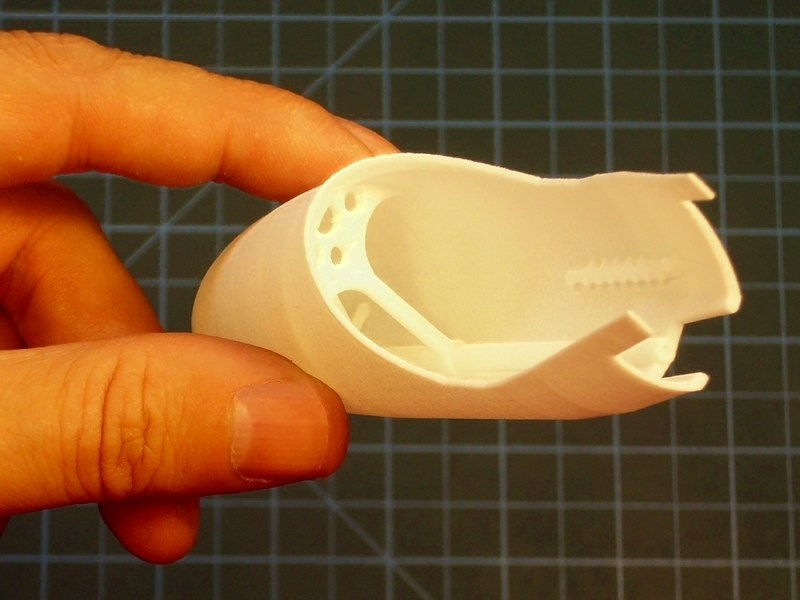

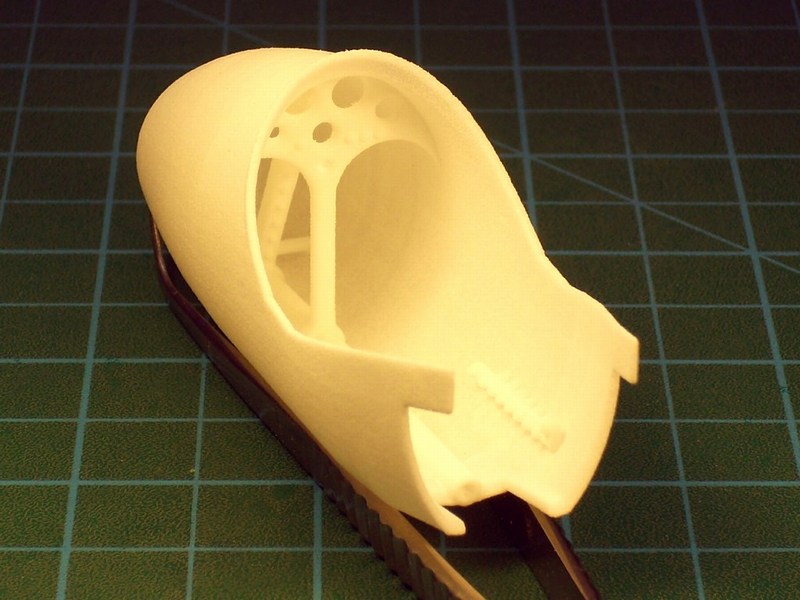

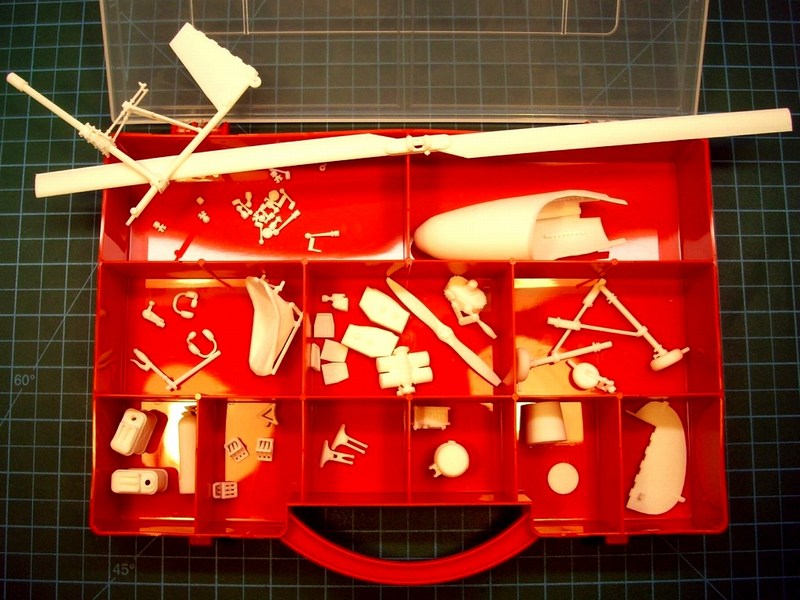

After building the 3D model and double check for possible mistakes, I saved it as a digital file and forward it on a 3D printer to start generating the individual parts of the autogyro scale model. Shortly thereafter, the printing proceeding outcome pleased me, while watching the Mbytes, magically converting into actual items. Once again, the 3D printing technology on scale modeler's service. As seen in the following pictures, as soon as the produced parts were cleaned, I checked for broken parts & imperfections. The model now consists of only a few parts, found into basic frame sections. Some additional details such as supporting rods, control bars & wires etc made of styrene, will be later added.




Edited May 21, 2022 by Nick_Karatzides

[Nick_Karatzides]

CHAPTER III - Attempting to join the basic parts

As soon as the individual scale model's parts were already produced, cleaned & dry fit tested, I had to assemble everything as one piece, without damaging the frame construction. The plan is to assemble all model's parts first, sand if required and later apply paint and weathering effects as a final touch. During assembling process, everything was secured in place & glued with CA liquid adhesive superglue, which does bonds in only few seconds, reaches extremely strength at room temperature and it is suitable for materials such as wood, rubber, plastic, metal, ceramics, leather, marble, polyethylene, polypropylene, teflon etc. Some tiny gaps were filled with putty, applied with an old brush. As soon as the joints were securely glued with CA superglue and later filled with putty on tiny gaps, it was carefully sanded with nail files & sanding sponge block. When it looked OK to me, the whole model was sprayed over with Humbrol acrylic primer to spot any mistakes and placed into a box to wait the final paint applying.


After my sweetheart wife (aka '4-star General in home' & 'family's financial director') conducted a strict quality control and result evaluation, she smiled & proudly signaled green light for further building & painting. Each section was dry fit tested to ensure that anything can be combined together as one piece, the parts forwarded for assembly.


Edited May 21, 2022 by Nick_Karatzides

[Royboy]

What a stunning model!!

I wish I could have one like this, the autogyro's not bad either, he he.

Ken Wallis, what more can you say, an absolute legend. RIP.

[dodgem37]

Brave man, no crash helmet.  SolidWorks eDrawing, huh?  Now I know.  Lucky man, married to a Bond Girl!  Fantastic on all accounts, Nick.



Sincerely,

Mark

[Derek B]

Nick,



I take my hat off to you - Dedication, professionalism and enthusiasm combine to produce a stunning and unique model. I met Kenneth in the 70's; he was a true gentleman.



Derek

[Nick_Karatzides]

CHAPTER IV - Wool flock covered seat

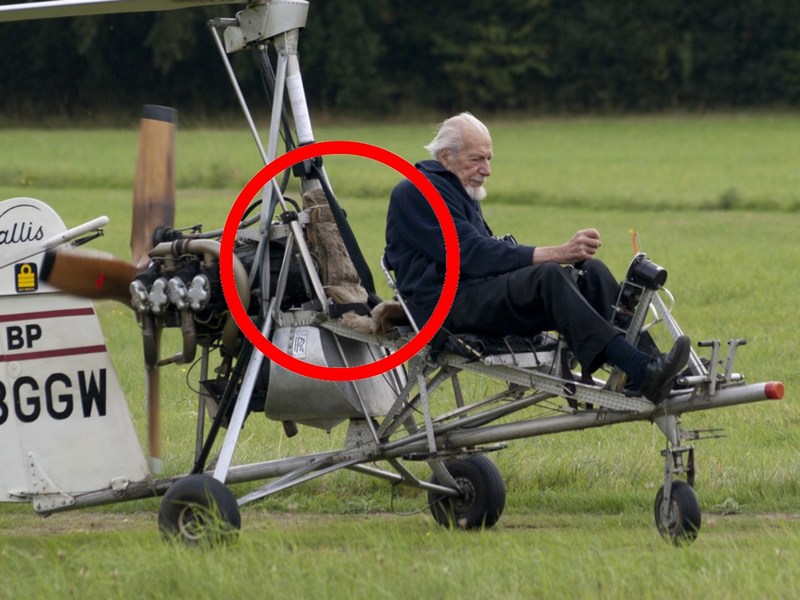

While studing on Wallis autogyros photos, I noticed that Ken had covered the Wallis WA-122 G-BGGW passenger's seat with wool flock fiber stuff. To be honest, I 've never seen any of the Wallis WA-116 autogyros having seats covered with this way, but I thought it was a good idea to replicate under scale and maybe possible to have happened in real gyro.

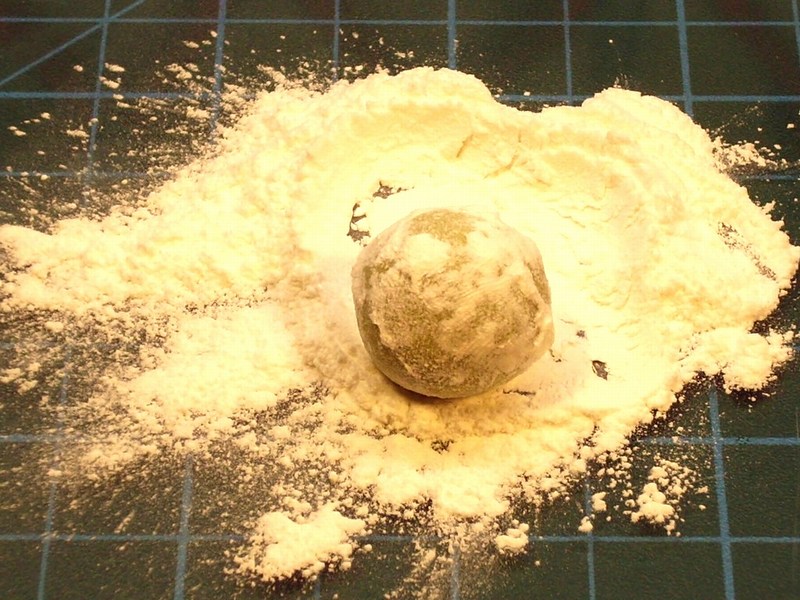

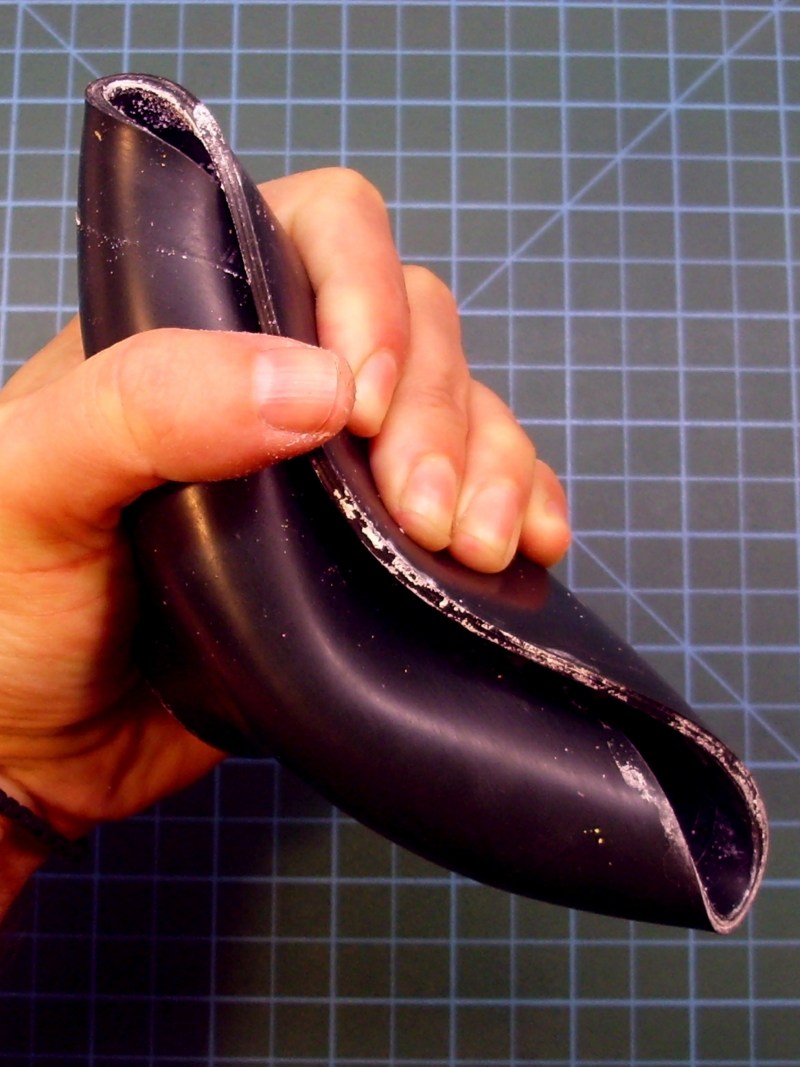

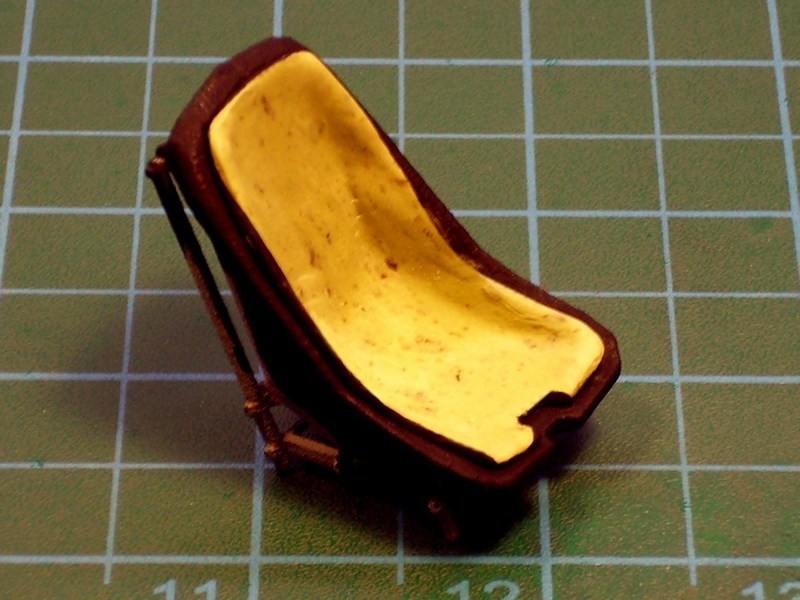

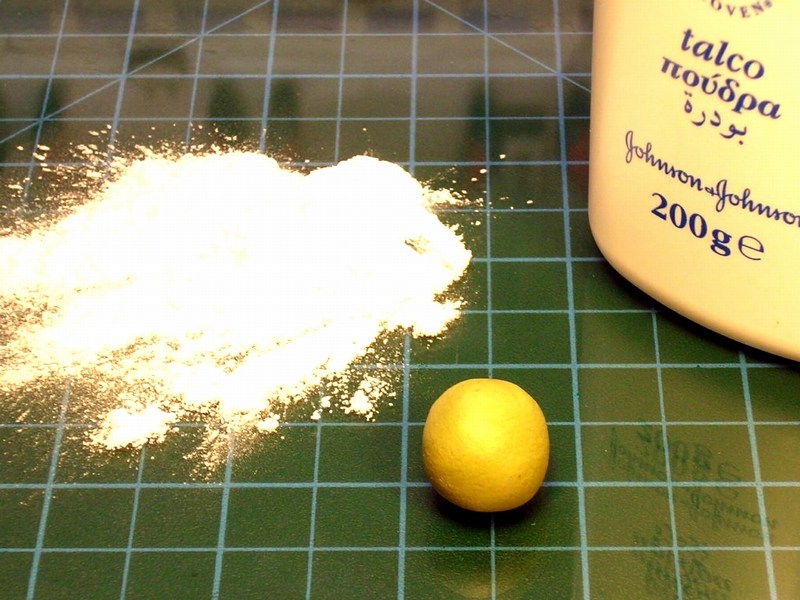

Using a small amount of Milliput putty, I made a small ball, dust it with talcum powder and pressed it against the working bench with a roller until it becomes about 0.5mm thin. The use of talcum powder is necessary to avoid Milliput sticking on roller or fingers and get easier to handle without tearing to pieces. While Milliput putty was still soft, I cut it into shape and placed it on pilot's seat, to form into a right to scale blanket cover.

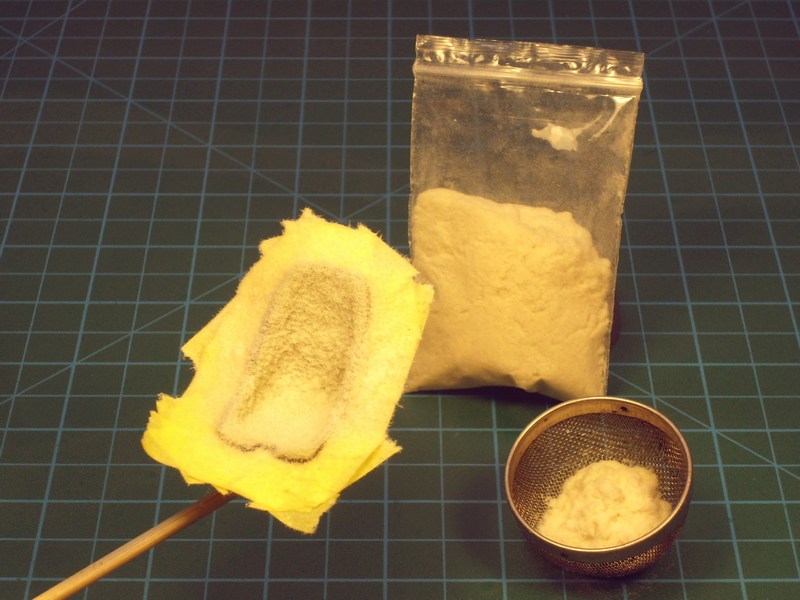

Then, seat covered with masking tape in such way to leave only the Milliput blanket area vissible. To recreate the seat cover, I used the #KF-00017 flocking powder product by KA Models, which is commonly used by scale car modelers to represent carpets. As you can see in the following photos, the flocking powder sprinkled through a sieve, over the Milliput blanket. When it looked OK to me, the powder secured in place, by airbrushing hairspray over the result.


Edited May 21, 2022 by Nick_Karatzides

[LSP_Kevin]

Geez Nick, you just keep knocking my socks off! Great tip about using the talcum powder with Milliput too, along with the flocking powder. I'm off to buy one of those nifty rollers!



Kev

[SinuheH]

This is way cool, amazing work, and I have to agree, it is a stunning model

[Nick_Karatzides]

CHAPTER V - Applying paint, wash & weather effects

Before dealing with this project, I had the impression that all Wallis autogyros, were all same - at least identical. The fact that each one of them is not a product of a factory assembling line but the result of custom hand work, shows that there are plenty of differences between them - obvious differences or just small details identified after careful observation. The autogyro represented here, is the s/n G-ARZA, one of the five first built WA-116s, typed as 'Wallis WA-116/Mc Srs.1' (the 'Mc' means 'McCulloch' engine and the 'Srs.1' goes for 'Series 1'). The three of these first five Wallis autogyros were produced on behalf of British Army Air Corps for further evaluation and had no cabin cover. After a brief military carreer, these three Wallis WA-116/Mc Srs.1 remodified, repainted and received new civilian callsign reguster. One of them, was destined to become very famous as 'Little Nellie' after appearing in the 1967 James Bond film 'You Only Live Twice' movie. Research based on the published files & info, shows that the serial numbers of these first built 'Srs.1' are the following:

• G-ARRT was the first Beagle Aircraft built prototype, first flown on 2 August 1961 at Shoreham. Aerodynamic cabin cover added later.
• XR942 initially built on behalf of British Army Air Corps and later renamed to G-ARZA. Aerodynamic cabin cover & beacon lights on rudder fin added later.
• XR943 initially built on behalf of British Army Air Corps and later renamed to G-ARZB. Aerodynamic cabin cover & dummy rocket launchers added later to become the widely known 007 James Bond's 'Little Nellie'.

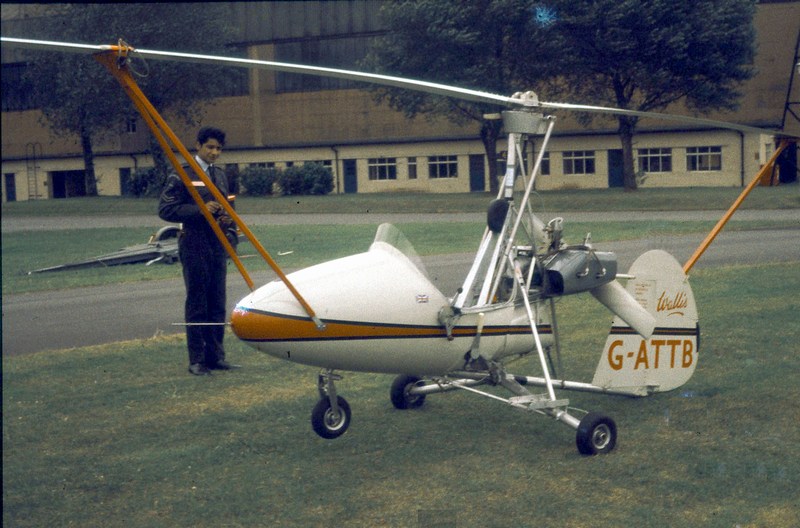

• XR944 initially built on behalf of British Army Air Corps and later renamed to G-ATTB. Aerodynamic cabin cover and longer main rotor blades added later.
• G-AXAS was the last built 'Wallis WA-116/Mc Srs.1' and was Ken's favorite, since he was usually demo flying with it at Reymerston Hall Dereham, UK until his last days. The tail rudder fin was replaced on 1986, by a Wallis WA-122 spare part.

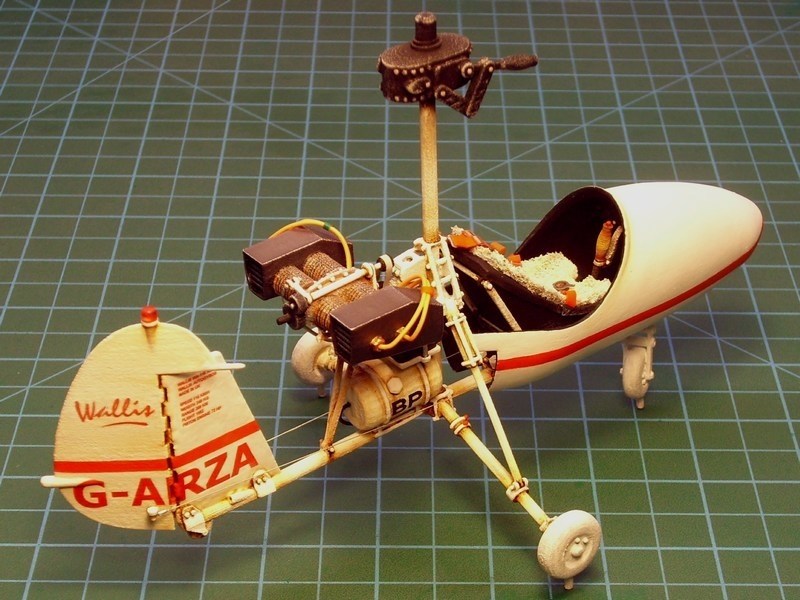

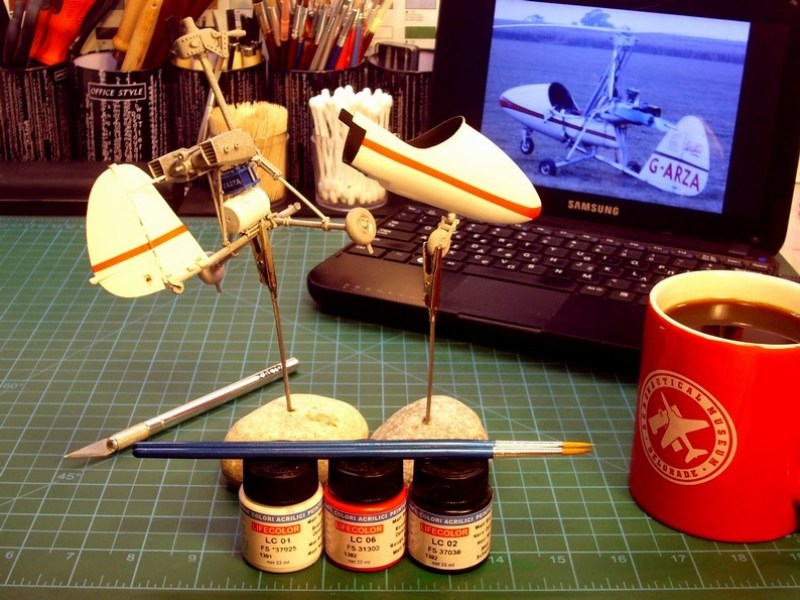

My goal is to paint the scheme of the G-ARZA, dressed up with it's new civilian colours, as appeared at EGBK Sywell, UK during the PFA Rally, back in 1973. Keep in mind that the specific autogyro, was initially built for military use, registered as XR942 and painted dark olive with official British Army markings - as seen at EGKB Biggin Hill, UK during the Biggin Hill Air Fair, back in 1964.


Model parts were washed with liquid soap and warm water to disappear leaving oil traces, fingertips etc and prepared for painting process. When it comes to apply paint on a scale model, I usually have the following two available options:

• Paint the individual parts first and assemble the scale model later and
• Assemble the scale model parts first and paint the overall built model later.

Since I designed this 1/18 scale Wallis WA-116 Agile autogyro in such way to look like a kit instead of 3D printing it as a fully built model, the first option seemed as more appropriate and would certainly make my job much easier. After preparing the engine's basic elements, connecting electric cables and oil or fuel lines, the aft part consists of the tail boom & rudder fin structure, the McCulloch 4318A engine and the transmission components etc painted by using fine brush. The front part consists of the cabin aerodynamic cover & flight controls, airbrushed with with Life Color LC01 Matt White FS37925 acrylic paint for exterior and Life Color LC02 Matt Black FS37038 for interior. The red stripe on aerodynamic cover and tail fin, painted with Life Color LC06 Matt Red FS31302.


Edited May 21, 2022 by Nick_Karatzides

[Mal_Belford]

Impressive work is going on here





And ver very inspiring to see, i like it, the model off course



/Mal

[Nick_Karatzides]

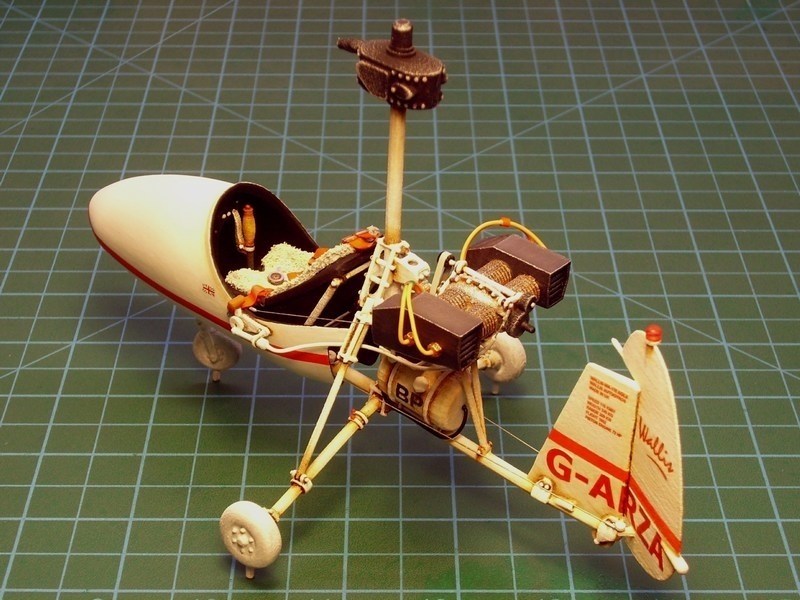

To form a complete pilot's seat, I used the 'EP-0017 seatbelts' photoetched set by Crazy Modeler, under 1/20 scale. The seatbelts got paint with red color - although they looked like khaki color in B&W pictures of the actual gyro - so as to make sharp & nice looking contrast with the previously mentioned (into CHAPTER IV) wool flock blanket covered seat.

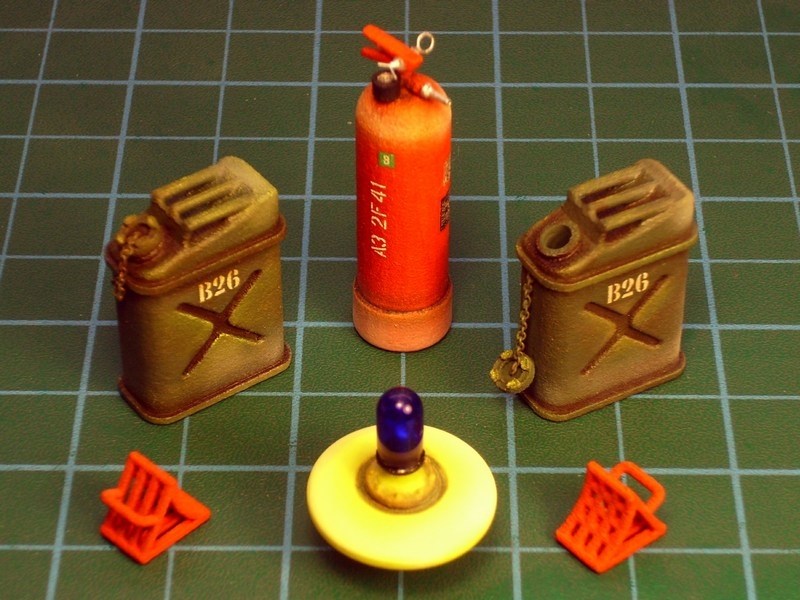

Some additional items, also designed from scratch and later 3D printed under 1/18 scale, such as fire extinguisher, 20 lt fuel canisters, wheel chocks and taxiway light unit, got also some paint & dirt effects. Maybe is not easily vissible, but there is also a bulb inside the blue cover of the taxiway light unit. Unfortunatelly, its hard to discern behind the dark blue glass






To replicate the G-ARZA callsign & Wallis logo on autogyro's tail rudder and a few more written details on fire extinguisher & fuel canisters, I had to create some right-in-scale custom water slide decals. To do so, I used the A4 sized printable 'Experts Choice Decal' film by BMF - Bare Metal Foil Co. The decal film is available in both clear and white one. The decal film can be printed on color inkjet printers, on LASER printers or a color photocopier to reproduce any digital image. Keep in mind that the inkjet decal film is intended for use with inkjet printers only. For photocopiers and LASER printers, the LASER decal film should be the best choice. After designing the images on Corel & rescaling on right dimensions, LASER printing the water slide decals on film and thereafter applying decals on model, I used a soft brush to apply a light coat of Microscale MicroSol to soften the decal and allow it to become part of the surface.






As soon as the water slide decals were dry, an acrylic gloss coat applied to seal the result so far. Once the acrylic gloss coat has cured, I tried to wash the paint by brushing artists grade oil paints with a broad, soft brush and spread the paint around until the desired colour density is achieved. At this point the oils would be workable for several hours. With a broad, soft, clean and completely dry paint brush, I draged over the oil paint, leaving dirt streaks. As the brush picked up the paint, I wiped it off on a clean, lint free cloth and continue process. “Lint free is the key phrase, as any speck of lint would adhere to the oil paint and destroy the finish. The beauty of this technique is that you can clean the oils off and try again if you goof up. I used a clean cloth and turpenoid paint thinner - not lacquer thinner - to wipe clean any mistakes and start over again. Some of the wash mixture is re-applied and the wash being wiped completely out of the narrow points.




Edited May 21, 2022 by Nick_Karatzides

[Azgaron]

Excellent work so far! Interesting subject too!



HÃ¥kan

[Nick_Karatzides]

CHAPTER VI - Concrete apron display base construction

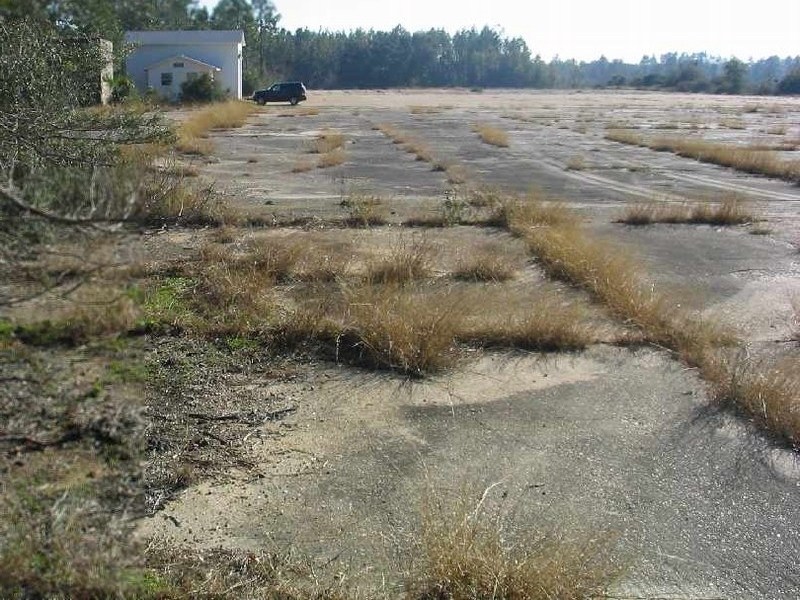

I found nice idea to place the Wallis WA-116 Agile autogyro model on a display base, simulating a maintenance & refueling area with short grass sprouted between concrete slabs. My goal is to recreate a scene of an airfield apron area where pre-flight activities were done. An apron is any area for parking and maintenance.

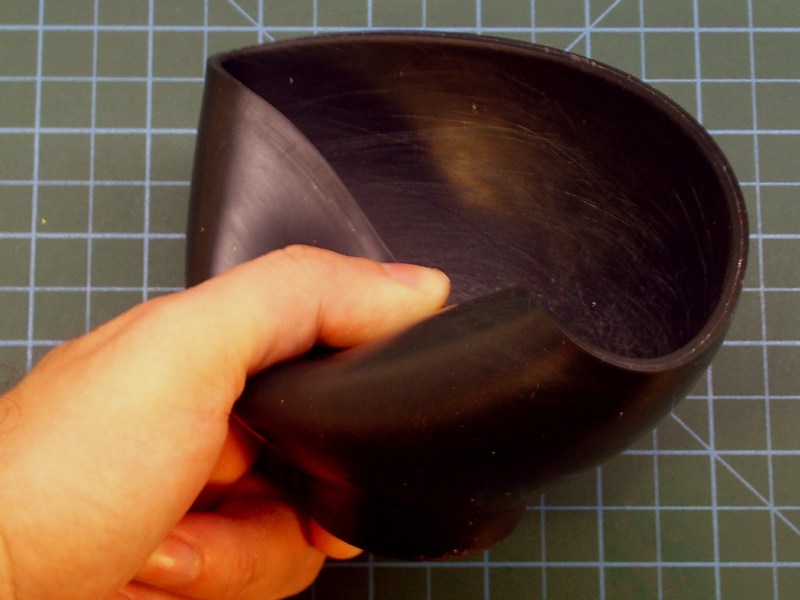

I add some grams of plaster powder and few drops of water into a soft rubber cup to make the right mixture. Materials like plaster, start as a dry powder that is mixed with water to form a paste which liberates heat and then hardens. Plaster remains quite soft for few hours after drying and this characteristic make it suitable for the job.






Keep in mind that:



• Adding salt into wet plaster mixture, reduce the plaster's hardening time,
• Adding vinegar into wet plaster mixture, extend the plaster's hardening time.

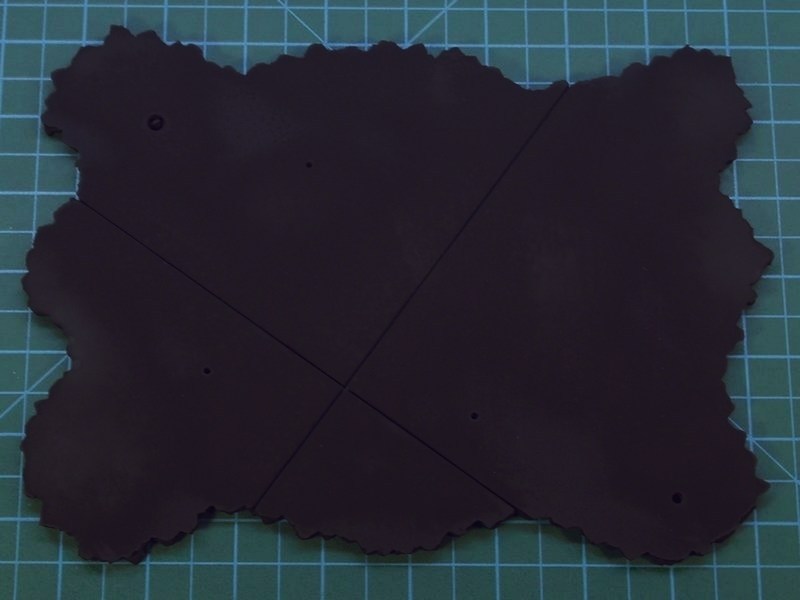

When the first layer of thinned plaster applied on a clean surface, a flat glass were pushed against the plaster to form a flat basic strong cast. The basic idea, is to produce a totally flat cast and later add some detail or apply extra stuff where is needed. I left it few hours to get harden in order to be sure that the cast wouldn't break when I would try to cut it into desired shape. Meanwhile, I took the soft rubber cup which I used to make the plaster mixture, squized it to break the last hardened plaster left inside, so it would be easier for me to clean it afterwards and prepare it for any future mix. That's the reason this soft rubber cup were used for.

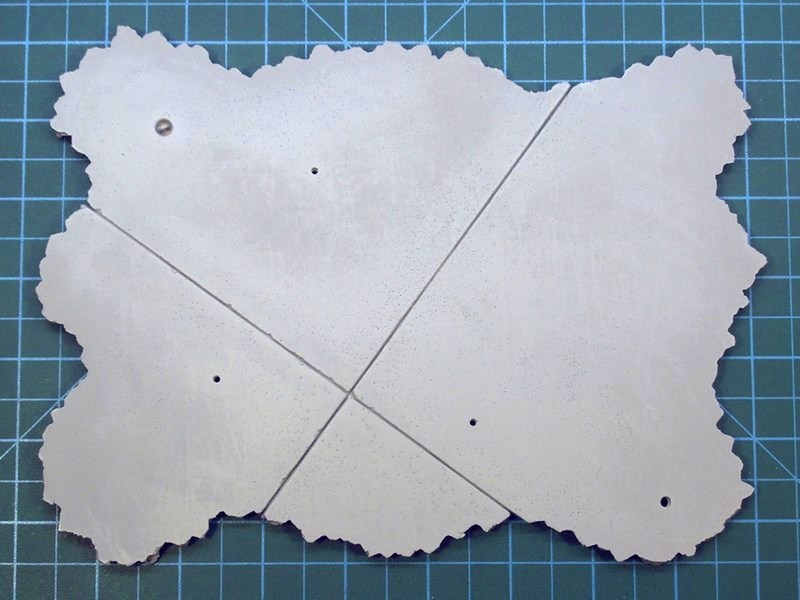

As soon as the plaster cast got harden, cut into shape and the concrete plaques were lined with a scriber, I used my airbrush to paint it. As I usually like to do, three different acrylic paint layers were applied on the plaster surface. First, mat black colour covered the area and then a light grey applied with airbrush, spraying in almost zero degrees angle, to let the darker areas between the concrete plaques remain naturally dark. The corner was paint with lighter grey & earth tones and as soon as the acrylic colours dried, I tried some drybrushing on selected spots using sand tones.




Edited May 21, 2022 by Nick_Karatzides
