Hacker

Me 110C-4 and G-4 build

Recommended Posts

Sorry guys been busy and l have been working on the 110s just dont have much to post at the moment. l been working on the radiatiors. l got two types l am working on. Each plane will have an exposed radiator and one shrouded in. l leave you a pic of what l am trying to accomplish. The only thing l have to figure out is where the coolant hoses go as l cant find anything telling me this.






Where this one fella is l suspect is where the hoses are as l cant see any other point of entry or exit of fluid unless its on the bottom. The drawings l have are wrong as l dont see the hoses leaving the front of the radator. l also are waiting on some parts that is slowing things down a bit as well l have alot of rescribing to do on everything. Anyways l will post some pics soon



hacker :blink: :(

Share this post


Link to post
Share on other sites

Man you don't post for a bit and wow how you slide down towards the bottom of the pile :blink: :lol: Anyways l have things to post today as l made some progress on some peices.









one set of radiators will be exposed so l had to scratchbuild the whole assembly while the other radiator will have its cover and will only be the faces

Share this post


Link to post
Share on other sites

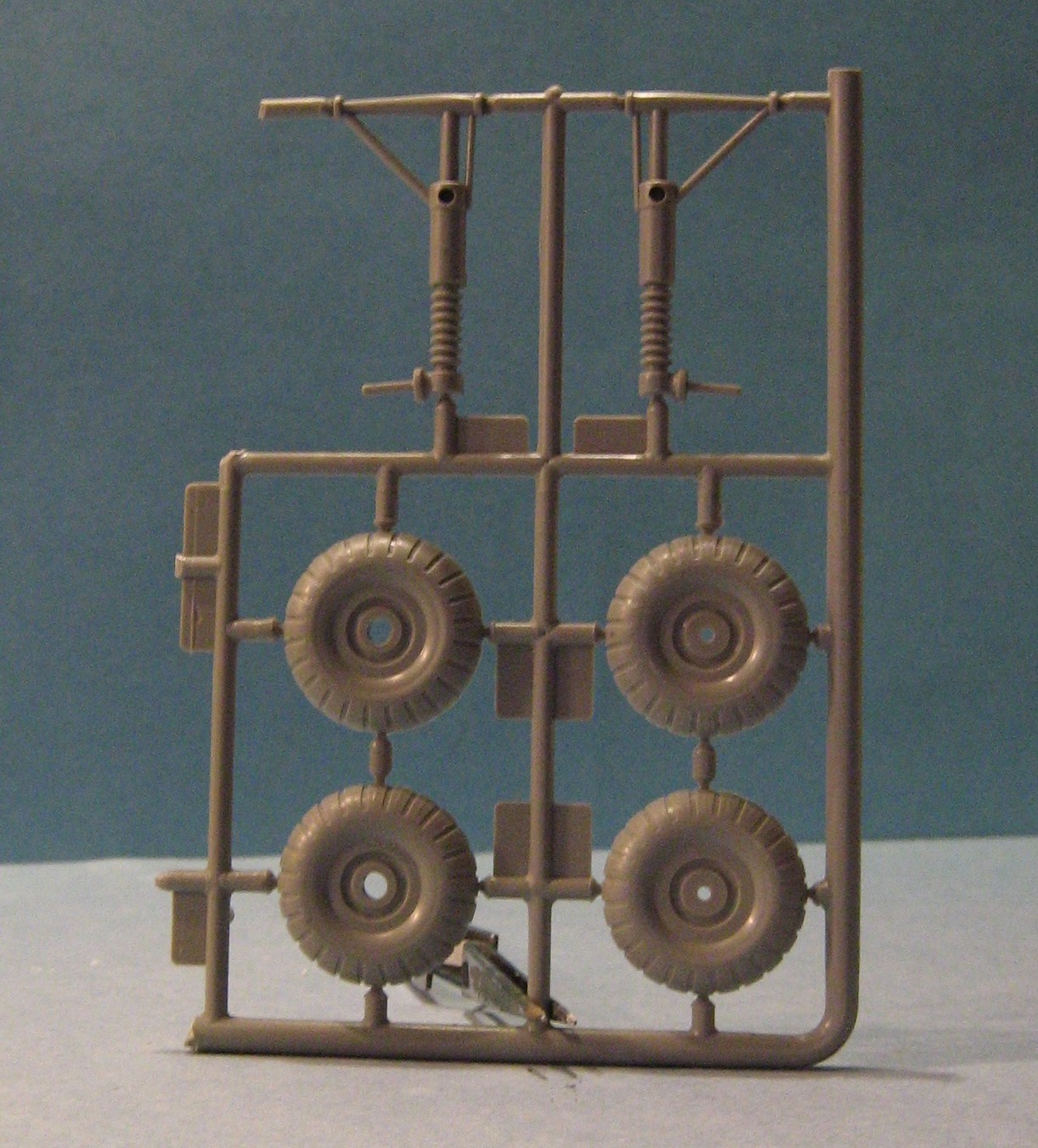

This is the landing gear as it comes in both kits. Not back but not accurate for either. here is where all the questions about the wheels come in so beware l took some liberial licensing here to get close to what it should look like

Share this post


Link to post
Share on other sites

110C-4B landing gear



post-542-1191955393.jpgpost-542-1191955411.jpgpost-542-1191955431.jpgpost-542-1191955447.jpg



l detailed the C landing gear a bit and added brake lines and l did this also on the G landing gear. As l wanted vented rims and grooved tires on the C l had to modify the rims. l drill out the existing rims and made a new rim with very thin styrene rod and made a new rim from styrene strip and put a 10.6 mm disk on top and detailed it so it would not look unfinished. Best l can do but l think it looks ok

Share this post


Link to post
Share on other sites

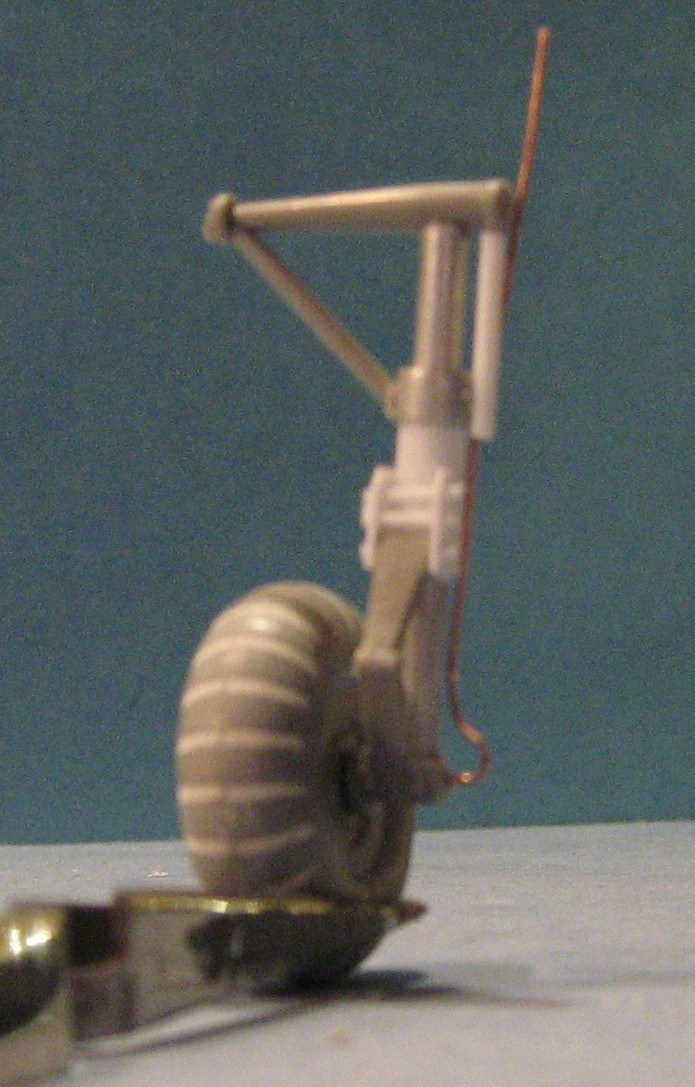

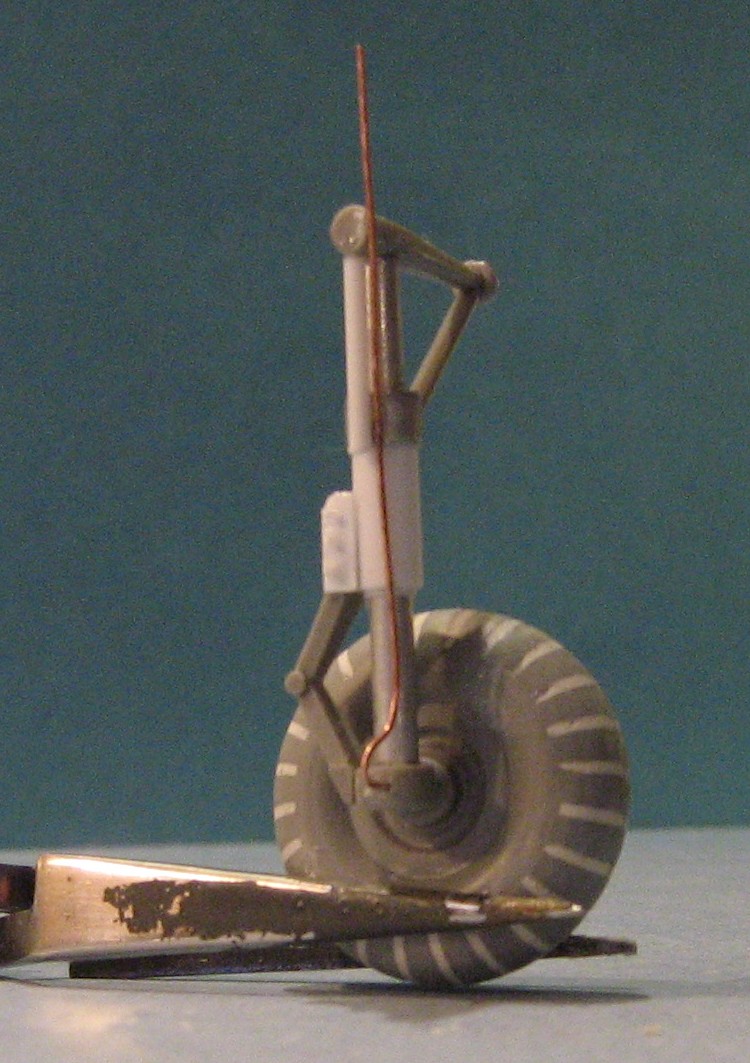

110G-4 landing gear



post-542-1191955571.jpgpost-542-1191955594.jpgpost-542-1191955623.jpgpost-542-1191955673.jpg



The G landing gear does not have the boot like the C has so l had to make bacially new gear here using some of the parts from the old one and fill and sand the tire treads as l wanted treadless tires on this bird

Share this post


Link to post
Share on other sites

well gang thats all for now working on all kinds of sub assemblies and will post them as l get them done



hacker :blink: :lol:

Share this post


Link to post
Share on other sites
More great work, Hacker!





HI Looking relly relly good keep the photos comming.



Texas :rolleyes: :rolleyes: :rolleyes:



Thanks guys appreciate the complements :P been working on this piece and that piece. l had to make 10 ammo drums and still in the process of detailing them. l need 2 on the guns in the floor plus 4 reserves, two for the Schrage Musik on the guns and two spares. Alot of turning and figuring out here. Hope to post more pics soon

Share this post


Link to post
Share on other sites

Good morning gentlemen and welcome to how to make a MG-17 7.69mm machine gun






We wish to build this gun in 1/32
