Hacker

Me 110C-4 and G-4 build

Recommended Posts

Very, very nice, Hacker! How did you make that seat! :lol:



Charles Metz



The gunner seat is vac formed but l dont like it so at the moment l am revamping the master for it. Stay tuned



Hacker :) B)

Share this post


Link to post
Share on other sites
Hi Hacker, what are you using for references ? I don't think C's had a rear seat like that but

I hate to say never regarding LW research. The only references to earlier rear seats looked

like a woven strap affair, something like this:






Sometimes that indentation for the rear gun to rest in wasn't that noticable because

it was often covered over for some reason. Nice addition tho :lol:



Mike

a

b

e

n

...just wondering.



this seating was introduced in the G variant when production was restarted. l have seen variations on this one like the one here and a more squareish type. Form what l see both are correct which leads me to believe right or wrong that there was two types manufactured by two different manufacturers. Personally l am going for the square one when l get there.






not a very good pic but this is what l am after in the C-4 version



hacker :) B)

Share this post


Link to post
Share on other sites
Have you had a geezer at the Eduard interior detail set for the G-4 kit. Its veeeely nice.



Cheers Matty



l have the interior set and though some of it ok alot of it is questoinable. For one the gunner/radar operator looks under size. l am using some of it l would like to get another instructment panel form it and seatbelts but you guys know me l mostly scratch build most of my stuff



hacker :lol: :)

Share this post


Link to post
Share on other sites

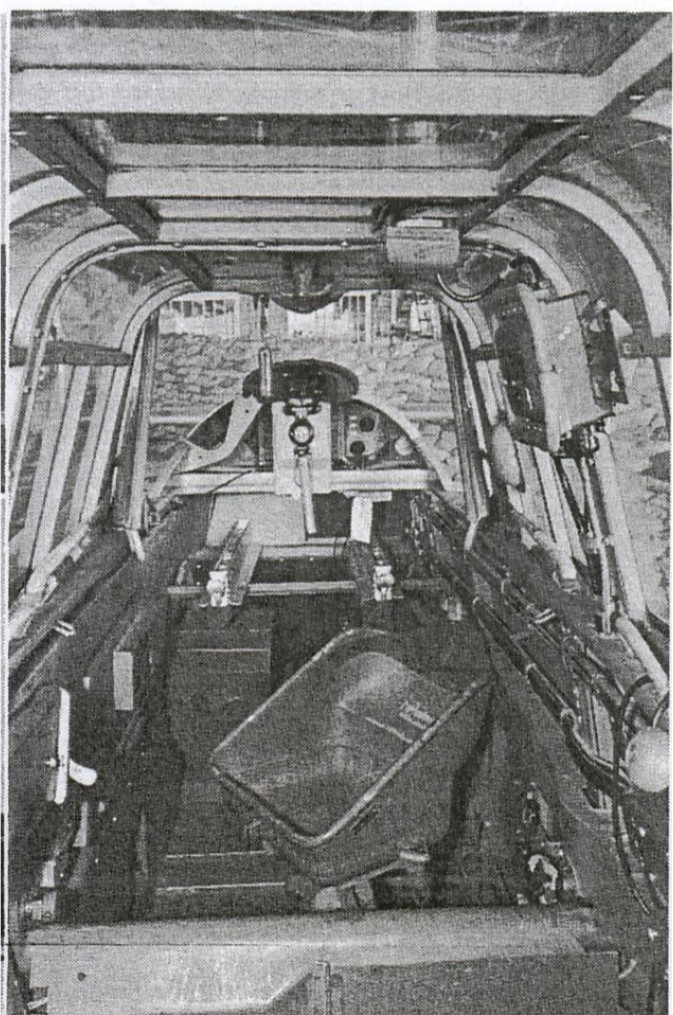

one of the difference between the C-4 and the G-4 is the rear cockpit. No self respecting 110G-4 would not be with out the Schrage musik gun installation. Here is what l am up against here






rear gun position






Schrage Musik installation



hope this helps you with the differences l have to build into each. Even though access to the G-4 rear fuselage is closed in unlike the C-4 it will be more crowded. Wish me luck



hacker :lol: :)

Share this post


Link to post
Share on other sites
Guest Rigor

looking good can wait to see what you do with it i have the c-4and g-4 so this should be fun :lol:

Share this post


Link to post
Share on other sites
looking good can wait to see what you do with it i have the c-4and g-4 so this should be fun B)



fun is an understatement!!!






Got the ammo racks done and some of the framing for the gun

more later



hacker :lol: :)

Share this post


Link to post
Share on other sites

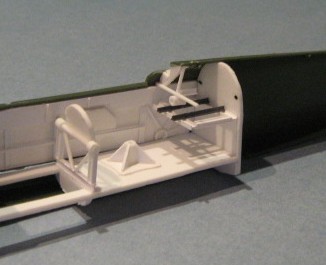

some work on the G-4 but still in a rough stage of things. l have to level out the radar operator/rear gunner seat and refine the Schrage Musik gun assembly a bit more.



hacker :lol: :)

Share this post


Link to post
Share on other sites

Well did some more work on the 110s here is what l have got so far

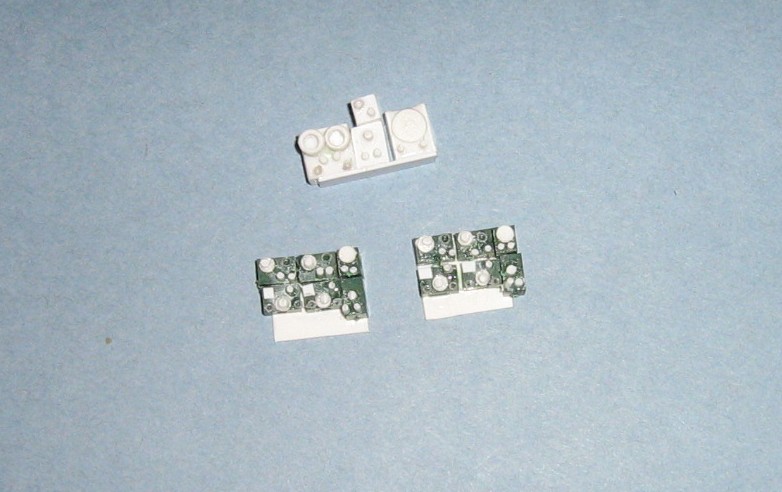

l have been working on the radio and radar equipment. l need only one set of radar equipment but l needed two sets of radios. nothing like production scratch building. l have the PE units but they have no depth. Too me they are too two dimensional for my likings

More later



hacker :huh: :rolleyes:

Share this post


Link to post
Share on other sites

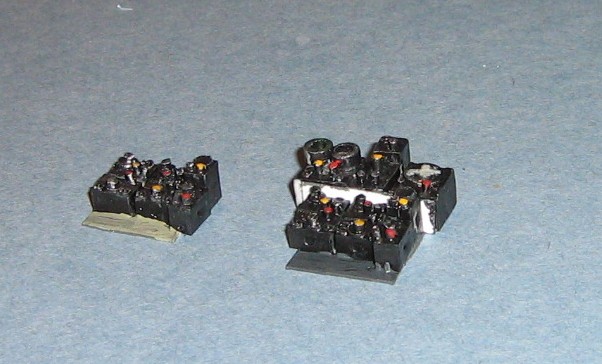

The radio equipment painted. l will wire it up later. one lower half is done in RLM 02 for the C-4 and the other is RLM 66 for the G-4. the white under the radar units is unpainted plastic as it will be glued to the top later



Hacker :huh: :rolleyes:

Share this post


Link to post
Share on other sites

Morning gang :lol:

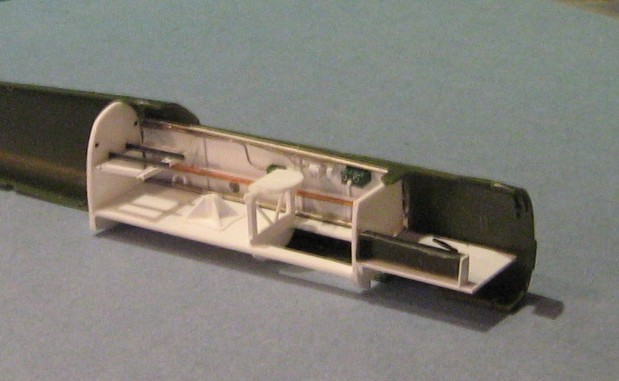

did some work on the C-4B rear cockpit. did alot of detailing on this half. The other half there is not much to do there

Share this post


Link to post
Share on other sites

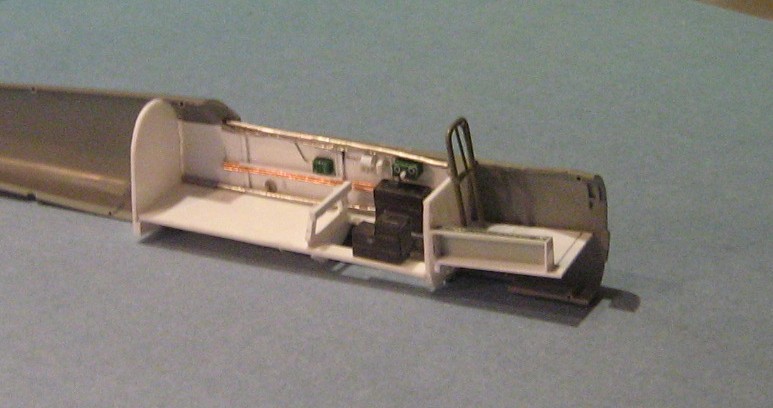

also worked on the G-4 while l was at it. it is slightly different but not by much. l only did what is visiable there as the ammo bins and the radio equipment hides alot of the detail so l opted not to go there. also with the rear being closed off on this version l did not have to go as far back either. Well time to build both cockpits up front. wish me luck. l have only one instructment panel so l have to see what l can do here. l may end up going to a freind to mold it for me. Later dudes



hacker :lol: ;)
