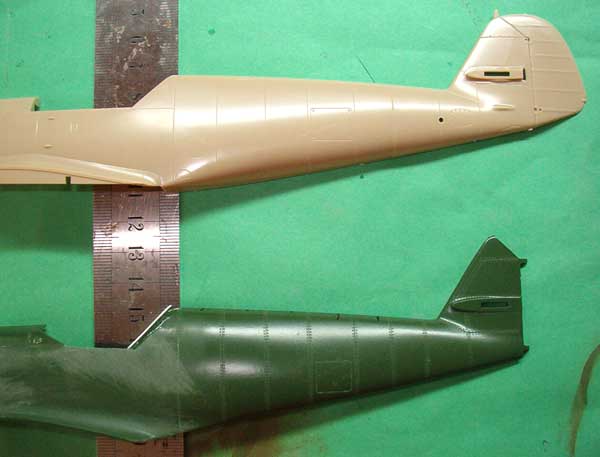

Hi guys I have 3 109's planned. One of them is the old revell model. Many of you would just throw this away but I have decided to have a go at fixing this model. In fact I started from there. So if you think I'm nuts, just skip the thread. Starting with the fuselage, basically, this is too long in front and too short (4mm) at the rear. It also has the wrong cross section from the cockpit to the tail. Here is the evident short rear.


Share this post


Link to post
Share on other sites

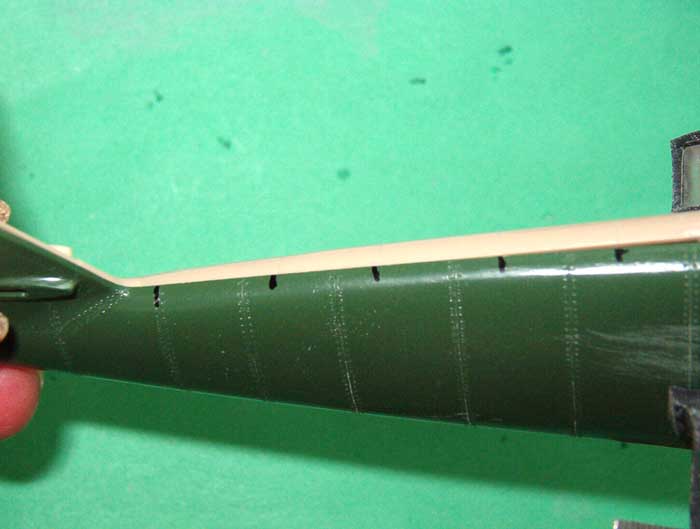

And here is the front end. This is too long but poses no problem since the whole nose section shall be replaced by the aires extensive detail set which includes the engine and all the cowl panels. these are perfect and so in my case, there is no need to rectify the front of the model. I have left the front on for the time being for strength. When it is cut off, there is basically nothing left of the front of the model.


Share this post


Link to post
Share on other sites

Old Revell 109 Brian?Oh man,I'm closing my eyes on this one...well,maybe a peek or two.LOL.We've all seen you turn the ol' Revell kits from nothing to something so this one should be pretty cool mate...cheers

Share this post


Link to post
Share on other sites

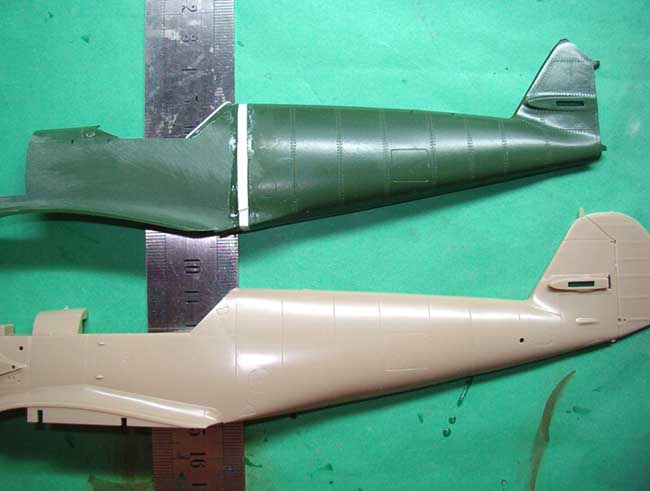

Placing the old and new revell kits together, one can see that the tails coincide and the rear fuselage will mate perfectly if the additional fillet is located at the cockpit end.


Share this post


Link to post
Share on other sites

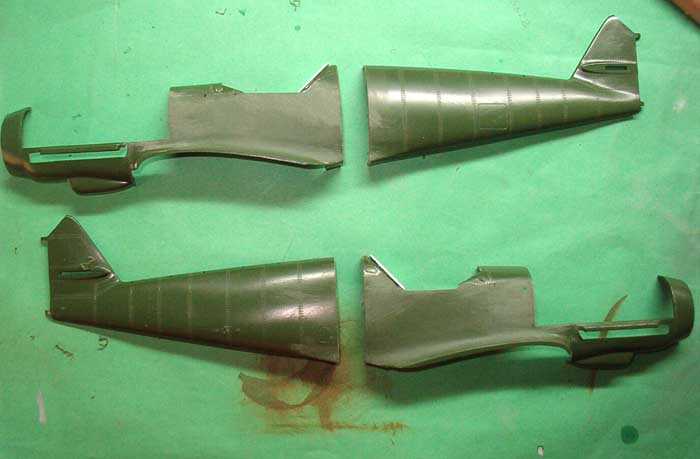

The fuselage is also too wide in section and this was rectified by sanding the lower edge of the rear halves. This not only narrowed the fuselage section but also resulted in the correct curvature to the lower fuselage.


Share this post


Link to post
Share on other sites

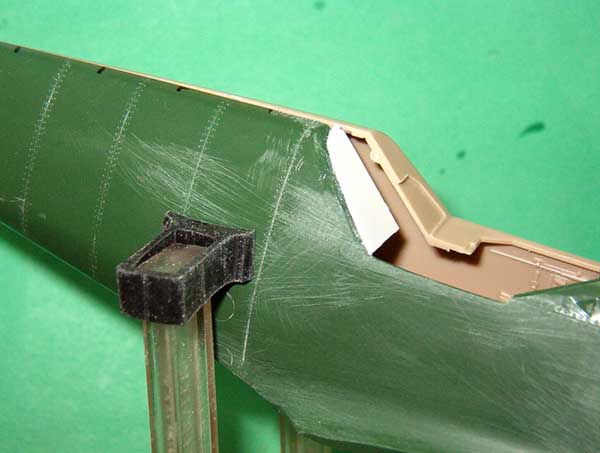

Last photo. The 4mm fillet in place and the fuselage once again whole. Both kits are now identical from the cockpit to the rear. There is now the need for some milliput to correct the shape of the fuselage top and bottom just behind the cockpit. The white plastic template stuck on the rear decking is the shape that needs to be mated to the rest of the fuselage and will serve as a guide for the milliput filling. ....... to be continued.


Share this post


Link to post
Share on other sites

Isn't there an old saying about silk purses and sow's ears?



Look forward to seeing the results you get with this kit - I had one many years ago, but sold it when I went solely with 1/48 kits. I've seen the light :) , and I'm building up on the new generation of 1/32.



Great work so far.

Share this post


Link to post
Share on other sites

Brian, glad to see you doing the Revell kit. Your approach to fixing the bird is sounding good, I am sure it helps to have the new ones to measure from.So basically all you have to do is: fix the fuse, re-shape the tail, correct the nose, change the wing chord, move the wheel wells,detail the pit... .

.

.

.

..... :)

Share this post


Link to post
Share on other sites

Brian,



Sounds like your having fun...good bit of recycling if you ask me B). Anyway, watching your builds is far more entertaining than watching Love Island or Big Bruvver :). I shall peek in from time to time to see how this one prgresses...I have a similar 'retro engineering' project in mind for the Revell Harrier one day.



Cheers



Derek

Share this post


Link to post
Share on other sites

I don't think you're nuts at all Brian. I love to see what you do with these old kits. It's the true mark of a master scratchbuilder.....you and Rodney. What group/theater wiil this be?
