A particular Multiple Ejector Rack info needed....

[Daniel Leduc]

Hi guys,



I have this crazy project in Silver Jubelee GB going on..





And I just can't find any real picture anyware on the net nor my library about that MER....





Would like to ad more detail to it but not sure if Revell reference's where correct...



Can you help.

Dan.

[Finn]

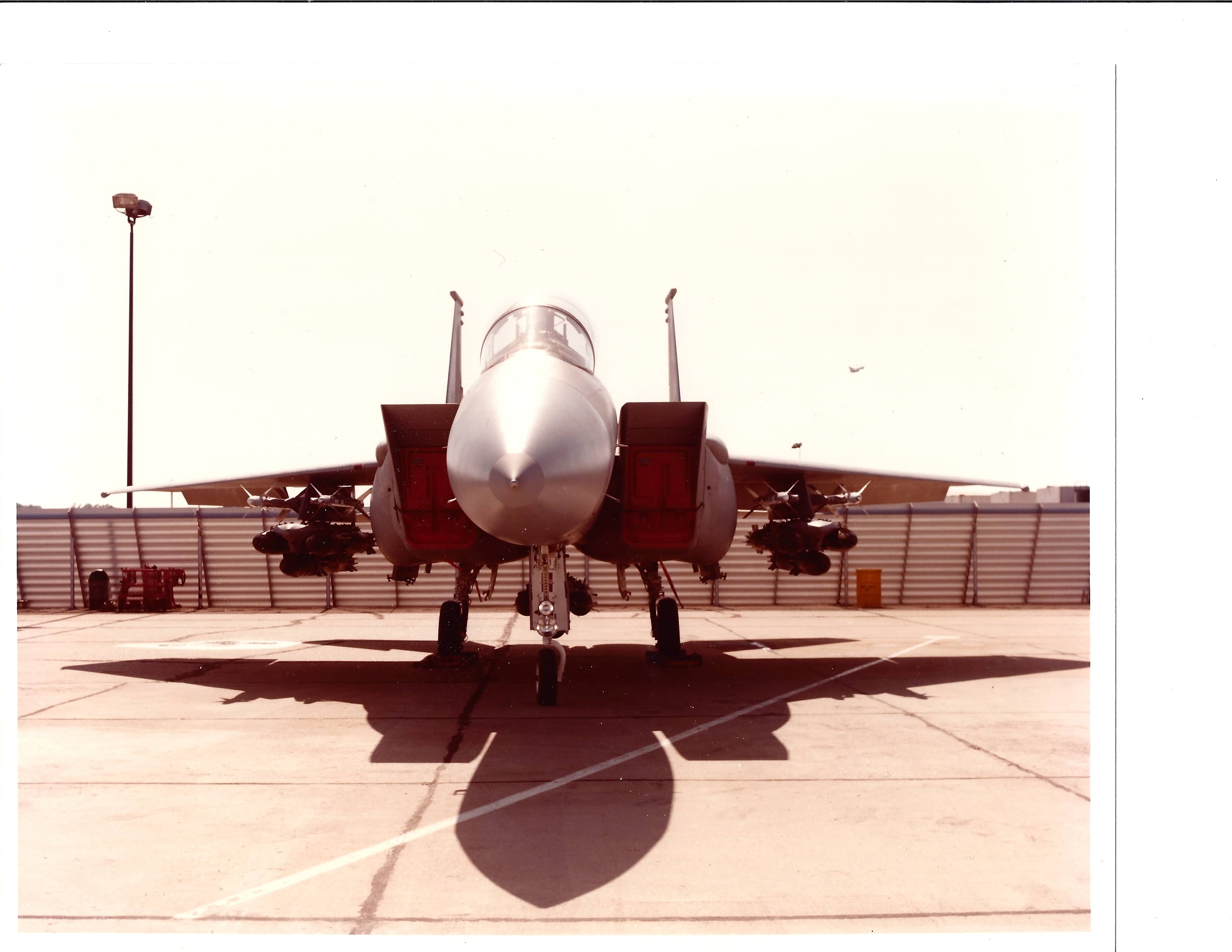

I think it was called a MER-200 or MER-2000 but it never went into production as the CFT got pylons to carry enough bombs. Here is another F-15 with the MERs:





Jari

[phasephantomphixer]

I saw them as sorta like but not the same as F-111 MER's where they held the munitions closer to the body.

I plan to just go with the Revell ones when my build is a go.

[Finn]

It's a MER-200P:



Lt - 196.9"

Width - 22.7"

Ht - 17.4"



Jari

[thierry laurent]

Years ago, I think I saw pictures or TM views in an old Aerofax book.
