Hy mates, have started another CORSAIR / with working wingfold.....what else?

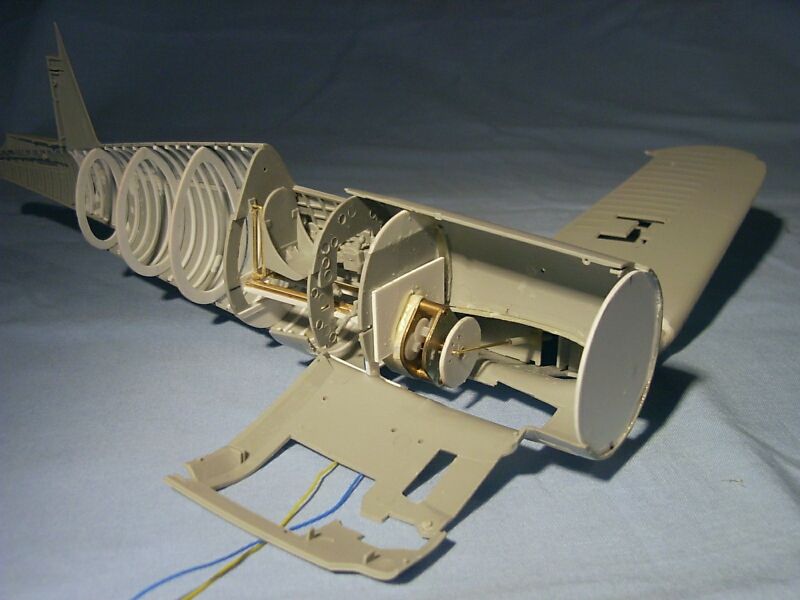

 )for the Navy collection, lots of impressive builds are going on in this forum these days so I decided only to post a few pics for the technic nuts  Hereīs a detail shot of the wingfold-mechanism: a geared motor is installed ( 3 turns per minute at 3 Volts) which drives a pushrod, this pushrod moves the wing up and down. one complete circle of the plastic disk ( made from a piece of styrene) mounted on the motor is one up-and down sequence of the wing. the pushrod, a simple brass wire with 1 mm diameter, goes into a short plastic tube as a guidance. Next step will be mounting firewall and front bulkhead, then the P&W will be mounted. enjoy Chris "the ripper"
Attached image(s)
|
 |

|
|
Sep 28 2005, 06:21 PM
Post
#2
|
|
|
Senior Member Group: LSP_Members Posts: 1602 Joined: 18-August 03 From: Germany, Eastend at Lake of Konstance, near Border to Austria Member No.: 44 |

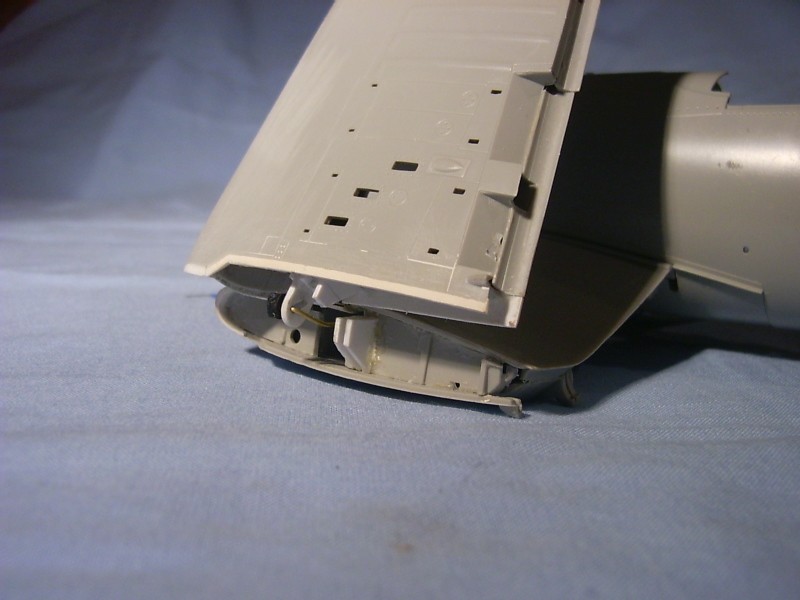

opposite side:
the pushrod is hinged into a small plastic spar ( thats the trickiest part of it īcause the size of the spar and the angle of it is essential for the correct way up+down. The small dummy spars are as a guidance for the wing to prevent it from twisting while folding down. Not absolutely in scale but this seems the best technical solution with only two moving parts in the whole mechanism which can easyly be removed / corrected / repaired when not working correct. Also the panel on the belly, right under the wingfold-motor, is made as a removable part to give access for service. Also all edges of the inner and outer wing had to be reworked / corrected with plastic-sheet ( white parts )to make sure an exactly closing of the wing and to prevent from any gaps. enjoy Chris "the ripper"
Attached image(s)
|
|
|
|
|
Sep 28 2005, 07:13 PM
Post
#3
|
|
|
LSP Junkie Group: LSP_Members Posts: 133 Joined: 11-September 04 From: France Member No.: 578 |
Hello Chris,
Beautiful job. Very well project that you have. SPang |
|
|
|
|
Sep 28 2005, 07:31 PM
Post
#4
|
|
 Senior Member Group: LSP_Members Posts: 1449 Joined: 5-May 05 From: South Africa Member No.: 906 |
Wow
 That is so far over my head I cant even see the contrails! -------------------- In he goes! ...even though both of us will cry...
Piet van Wyk De Vries |
|
|
|
|
Sep 28 2005, 07:34 PM
Post
#5
|
|
 LSP Junkie Group: LSP_Members Posts: 122 Joined: 1-October 04 From: UK Member No.: 598 |
Chris that is fantastic!
It'll be great to see it working. Keep up the good work Angelo |
|
|
|
|
Sep 28 2005, 07:52 PM
Post
#6
|
|
 Senior Member Group: LSP_Members Posts: 3796 Joined: 1-October 04 From: Hannover - Germany Member No.: 600 |
Where will it end...
 canīt wait to see it working on the expo. Nice Chris! Cheers mate -------------------- On the bench: Hasegawa T-Bolt
Stand by: Hasegawa Me 109 G14 ; Eduard Me 109 E1 Future Project: Revell Eurofighter Typhoon |
|
|
|
|
Sep 28 2005, 07:56 PM
Post
#7
|
|
 Senior Member  Group: LSP Moderator Posts: 3486 Joined: 11-August 04 From: Ontario Canada Member No.: 542 |
you are mad l tell you. mad!!!!! I can hear you singing that song now
they're coming to take me ah ah. they're coming to take me away ho ho --------------------  WORK IN PROGRESS 1/32 Ta 152H ( set aside) 1/32 Me 110C & G ( in GB) 1/32 Mig 3 FUTURE PROJECTS 1/32 P-51B & D 1/32 Ki-61 Tony 1/24 Hurricane 1/32 J8N1 Kikka ( set aside) RESEARCHING ON J2M3 Jack N1K2 George Beaufighter Mk 24 Spitfire Tornado ADV F.3 Blackburn Shark (32 or 24 scratchbuild project) |
|
|
|
| Guest_LSP_Jay L_* |
Sep 28 2005, 08:55 PM
Post
#8
|
|
Guests |
Aww so nice mate! Such awesome modelling Chris. Really nice to watch as it progresses.
Cheers mate, Jay |
|
|
|
|
Sep 28 2005, 10:11 PM
Post
#9
|
|
 Senior Member Group: LSP_Members Posts: 1216 Joined: 29-December 04 From: Naples, Florida Member No.: 719 |
Ripper- You are a SICK SICK man! Awesome job.........Makes me wanna throw my exacto.............
THOR
-------------------- Is the enemy of my enemy my friend?; or just another a**hole?
|
|
|
|
|
Sep 29 2005, 08:14 AM
Post
#10
|
|||
 Senior Member Group: LSP_Members Posts: 6015 Joined: 30-August 03 From: Belgium/Oostende Member No.: 114 |
Working machineguns would be nice Great work Ripper ! |
||
|
|
|
||
|
Sep 30 2005, 12:20 AM
Post
#11
|
|||||
 Senior Member Group: LSP_Members Posts: 2015 Joined: 11-February 04 From: Sydney, Australia Member No.: 346 |
Wow Chris, this is truly insane Youll excuse me if I just wallow in the mud of normal model making for a while longer heehee.I want to see some working hobbit hispano's on your next Spit
-------------------- It's hard to argue when
you won't stop making sense But my tongue still misbehaves and it keeps digging my own grave ____________________________________________ |
||||
|
|
|
||||
|
Sep 30 2005, 06:44 AM
Post
#12
|
|
|
Senior Member Group: LSP_Members Posts: 3020 Joined: 19-May 05 Member No.: 915 |
Great work Chris. thanks for showing us the works. Good to see what is hiddin inside the model once it is all closed up.
|
|
|
|
|
Sep 30 2005, 11:04 AM
Post
#13
|
|
|
Hooked For Life Group: LSP_Members Posts: 253 Joined: 6-September 05 From: Cookham, Berkshire, UK Member No.: 1050 |
Looks like another very impressive Corsair from your workshop!
Where do you get the reference material for the interior details? I searched for ages (on the Internet and in model book shops) before finding this forum, and couldn't find much other than basic cockpit photos. The wing fold mechanism is an amazing piece of work; I wish I had the skills to add something like that to my 1/18 model. As it is, I'm just going to build it with the wings permanently lowered. |
|
|
|
|
Sep 30 2005, 08:07 PM
Post
#14
|
|
|
Senior Member Group: LSP_Members Posts: 1602 Joined: 18-August 03 From: Germany, Eastend at Lake of Konstance, near Border to Austria Member No.: 44 |
Thanx mates...I knew youīll like it!
 Some more progress: bulkhead and firewall are mounted, also the P&W ( hardly modified REVELL motor) including the elektro motor is mounted for a test fit
Attached image(s)
|
|
|
|
|
Sep 30 2005, 08:12 PM
Post
#15
|
|
|
Senior Member Group: LSP_Members Posts: 1602 Joined: 18-August 03 From: Germany, Eastend at Lake of Konstance, near Border to Austria Member No.: 44 |
side view: looks like that 1/32 CORSAIR was especially made for beeing filled with motors and electrics......fits perfect!
Although the elektro motor of the P&W is a bit bigger than the real kit part and not in scale itīs no problem īcause most of that will be hidden behind air channels, wiring and all that stuff. Next step will be painting................ enjoy Chris "the ripper" |
|
|
|
|
