Hasegawa Bf109G-6


39 replies to this topic

#1 dodgem37

dodgem37

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 7,815 posts
  • Gender:Male
  • Location:Silver Spring, Maryland USA

Posted 01 March 2010 - 02:18 AM

Gentlemen,
I just finished this kit, and thought I'd put it up for show.
It may suppose to go into the Aces Build, I don't know, but I'll let the Mods make that decision.

Posted Image

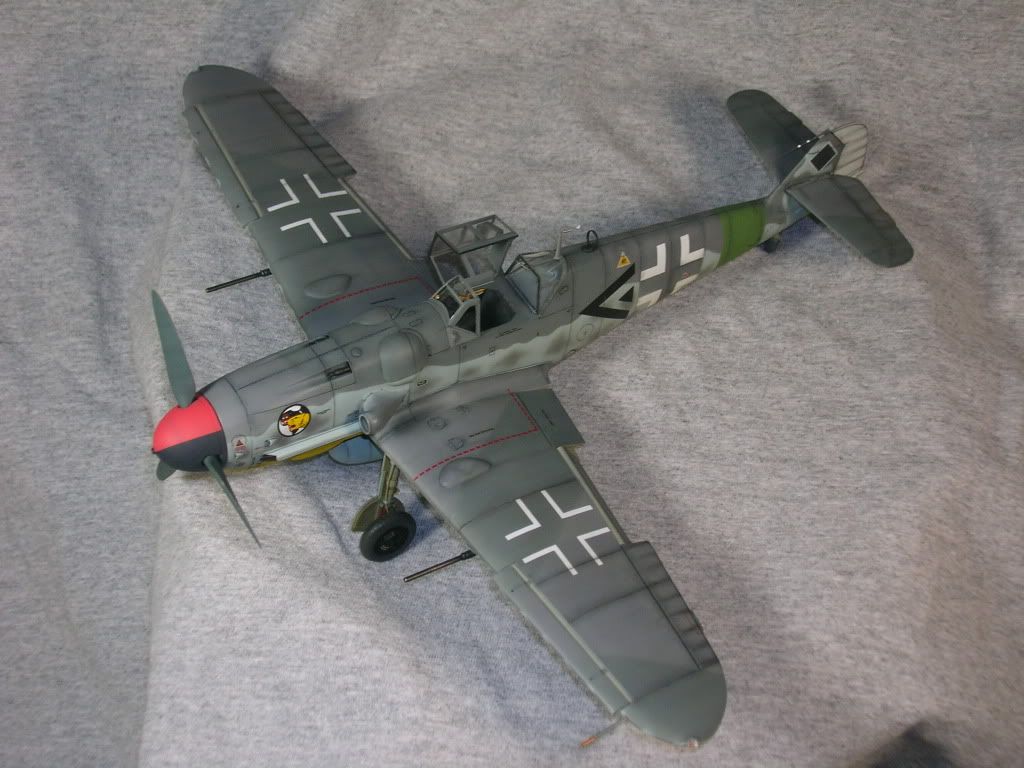

The scheme is standard RLM 74/75/76 over a base coat of Primer. Preshading was with FS36081 Euro Grey I. RLM's were tinted 20% white. 5 parts RLM/1 part white. Defence band was mix of RLM 4 & 24 (I think blue is 24), with 20% white. Camo was scanned, enlarged, and paper stenciled from Cutting Edge CED32026 Gustav Aces Part 2. I used blue tack to set the stencils off, but a tight line was the result anyway. The Solvaset system was used for the decals. Weathering on the top was done with lamp black. I replaced the broken tail wheel shaft with brass rod and set the wheel at an angle. Swastika is painted.

Posted Image

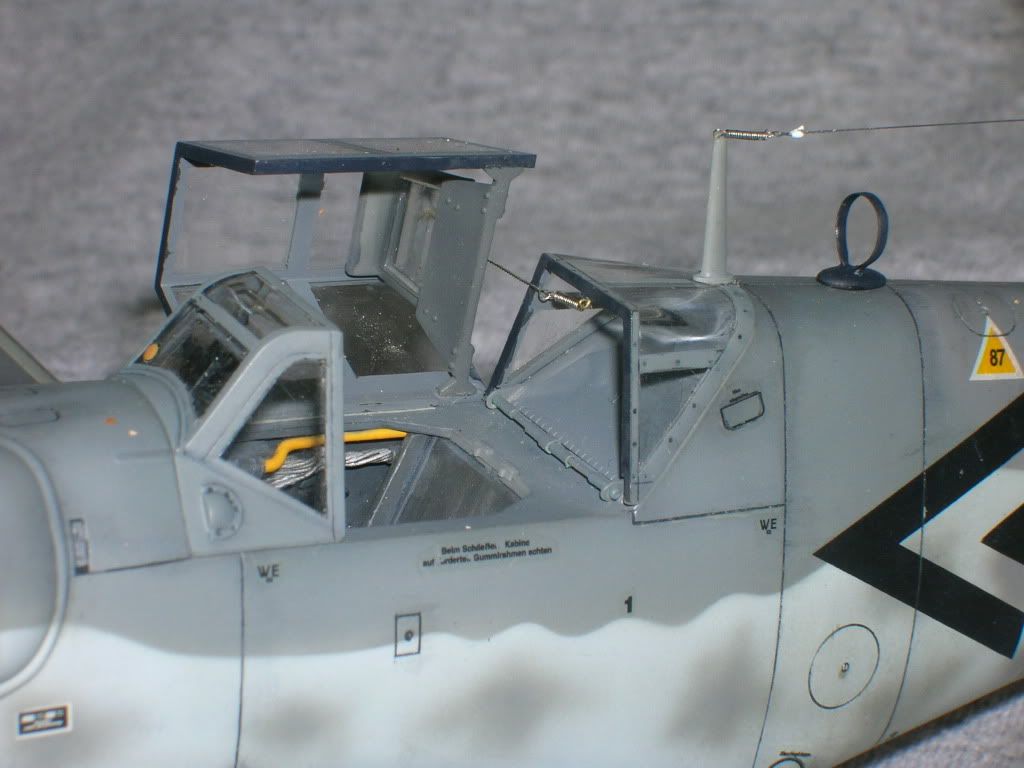

Cockpit sidewall wiring, interior windshield handholds and flare tube, rear cockpit detail including retaining wire and spring connecting the center section with the rear, and some other stuff, which I don't know what it is. I tried my hand at making the antenna wire, antenna wire spring, and rear connecter. Wire is invisible thread painted steel. Insulators are white paint. The DF loop is flattened solder. I don't know what those spots are. Desicating tablet is RLM79. Masked cockpit glazing interior and sprayed it RLM66. Painted glazing edges black to represent rubber seals. Delicate slip streamed weathering around panel lines.

Posted Image
I saw this 1/3 red/2/3 black boss on page 76 in a Hasegawa Bf109G-6 book, liked the way it looked, double checked a photo of this plane in Squadrons In Action book and said, 'Yep, I can interpret that photo as this' and did so. Thus, the red/black boss. New wiring on main wheel struts. Wavy demarcation lines on the leading edge. Cut out gun trough.

Posted Image
The tail position light was drilled out and stretched clear sprue was shaped, polished and glued in place with future. The gun pod barrels are aluminum tubing painted steel. Wire rod fusalage antenna.

Posted Image
I weathered the fusalage with black oil paint to represent the engine oil leaks. Yep, hardly visible here. The gear bay area with ochre to represent the dirt thrown up from the tires. The wings from the centerline of the gun pod to the wing tips are weathered with lamp black oil paint. The drop tank is a new addition so it is only preshaded and painted.

Posted Image
I opened the 4 holes in the wheel well shaft area. I didn't bother with the wheel aspect of the well. Modifying it is beyond my skill level. I tried my hand with the wheel well bulges, though. I opened the upper wing, vacuum-formed the bulge, glued it on, filled the spaces with milliput to try and save the day, then poured primer paint in to smooth things out. I forgot to remove the masking, that's why it looks a little krinkled in there. Cut out shell ejector chute. Oil cooler flap is closed for some reason.

Posted Image
I think you might be able to see some of the subtle weathering streaks in this photo if you enlarge it by clicking on the black bar at the top of the picture.

Last but not least.
Posted Image

Thanks for looking.
Sincerely,
Mark
  • Dany Boy likes this

        Works in Progress:   Italeri 1/35 PT596Tamiya P-51D, Sinai, 1956,

            Completed WiP:  Erich Hartmann, Bf109G-14

                        Idle WiP:  Fw190A-5 Black 7 1/25th IDF Sho't, c.1982Bf109K-4, I./KG (J)6, BohemiaHungarian Bf109G-14, Bf109F-4/Z Trop,Shelf of DOOM!: Kawanishi N1K1 Kyofu Type 11 Rex , IDF AH-1 Tzefa FWerfer-Granate 21's,

   Ready for Inspection: Erich Hartmann, Bf109G-14, Ludwig Franzisket, Bf109G-6


#2 theseeker

theseeker

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,697 posts
  • Gender:Male
  • Location:Close to Houston, TX

Posted 01 March 2010 - 02:25 AM

Mark,

If I were you, I would stop building and painting now! You cannot do any better than this.

Rocky

The best revenge is living well!

On the bench:


1/32 TAM F-4E almost done....
1/12 Lotus 97T Senna


#3 LSP_Kevin

LSP_Kevin

    Senior Member

  • Administrator
  • 39,716 posts
  • Gender:Male
  • Location:Melbourne, Australia

Posted 01 March 2010 - 02:38 AM

Mark, that is a stupendous rendition of the 109! Fabulous work indeed. I've just moved your thread here to Ready of Inspection where it more properly belongs.

Kev

#4 PhilB

PhilB

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 2,750 posts
  • Gender:Male
  • Location:Buckinghamshire, GB

Posted 01 March 2010 - 05:34 AM

Mark,
Absolute beauty fella!
One of the best G6's I've seen!

Phil :BANGHEAD2:

Currently being abused
F-8C VF-84 Fisher conversion




#5 blackbetty

blackbetty

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 4,429 posts
  • Gender:Male
  • Location:Austria

Posted 01 March 2010 - 06:52 AM

very nice G6!
since fels am wagram is a couple of miles from where i live and i am not aware of an airbase near it, whats the story?
did the plane go down there? there was no front line near it in may 44

back after 20 years

DUE TO A HOSTING PROBLEM A LOT OF PICS OF MY BUILDTHREADS ARE GONE. ANYONE INTERESTED CAN REQUEST THESE VIA PM FROM ME


#6 dennismcc

dennismcc

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 2,501 posts
  • Gender:Male
  • Location:Wirral UK

Posted 01 March 2010 - 08:55 AM

Absolutely stunning work, hopefully one day I will be that good !

Cheers

Den

#7 dodgem37

dodgem37

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 7,815 posts
  • Gender:Male
  • Location:Silver Spring, Maryland USA

Posted 01 March 2010 - 10:12 AM

'since fels am wagram is a couple of miles from where i live and i am not aware of an airbase near it, whats the story?
did the plane go down there? there was no front line near it in may 44'


The title information comes from Histoire & Collections Planes & Pilots Me109 Volume II From 1942 to 1945 book by Dominique Breffort & Andre Jouineau, page 49. I wish I could give you more information but I don't know more than this.

Sincerely,
Mark

        Works in Progress:   Italeri 1/35 PT596Tamiya P-51D, Sinai, 1956,

            Completed WiP:  Erich Hartmann, Bf109G-14

                        Idle WiP:  Fw190A-5 Black 7 1/25th IDF Sho't, c.1982Bf109K-4, I./KG (J)6, BohemiaHungarian Bf109G-14, Bf109F-4/Z Trop,Shelf of DOOM!: Kawanishi N1K1 Kyofu Type 11 Rex , IDF AH-1 Tzefa FWerfer-Granate 21's,

   Ready for Inspection: Erich Hartmann, Bf109G-14, Ludwig Franzisket, Bf109G-6


#8 Mikester

Mikester

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,518 posts
  • Gender:Male
  • Location:Yokosuka, Japan

Posted 01 March 2010 - 03:58 PM

Mark, that's just a beautiful Gustav. I really like you weathering on the undersides, I'm in the final stages of a G-4 and I think I'll see if I can replicate what you've done on yours.

Nicely done! :bow:

Mike Offutt
Yokosuka, Japan via Temecula, Ca

http://www.jg32.org




#9 Mikester

Mikester

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,518 posts
  • Gender:Male
  • Location:Yokosuka, Japan

Posted 01 March 2010 - 04:05 PM

very nice G6!
since fels am wagram is a couple of miles from where i live and i am not aware of an airbase near it, whats the story?
did the plane go down there? there was no front line near it in may 44


I./JG 27 was based there from 22.8.43 - 6.6.44. I believe the positioning there was primarily to defend against incursions by 15th AF into Southern Germany and Austria.

Mike Offutt
Yokosuka, Japan via Temecula, Ca

http://www.jg32.org




#10 Kagemusha

Kagemusha

    Senior Member

  • LSP Moderator
  • 9,688 posts
  • Gender:Male
  • Location:Mancunia

Posted 01 March 2010 - 05:03 PM

Very nice indeed.

#11 nmayhew

nmayhew

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 3,651 posts
  • Gender:Male
  • Location:Sissinghurst, Kent, England

Posted 01 March 2010 - 07:18 PM

awesome!

Nick





#12 dodgem37

dodgem37

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 7,815 posts
  • Gender:Male
  • Location:Silver Spring, Maryland USA

Posted 01 March 2010 - 11:22 PM

Wow! Guys, many thanks. Such compliments!
I took some more pictures (it's a Nikon Coolpix-nothing extravegant) to see what could be done with it besides the point and shoot I've already posted, and if no one minds, I wanted to post these also. They're a little more dramatic.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Once again, thanks for looking.
Sincerely,
Mark

        Works in Progress:   Italeri 1/35 PT596Tamiya P-51D, Sinai, 1956,

            Completed WiP:  Erich Hartmann, Bf109G-14

                        Idle WiP:  Fw190A-5 Black 7 1/25th IDF Sho't, c.1982Bf109K-4, I./KG (J)6, BohemiaHungarian Bf109G-14, Bf109F-4/Z Trop,Shelf of DOOM!: Kawanishi N1K1 Kyofu Type 11 Rex , IDF AH-1 Tzefa FWerfer-Granate 21's,

   Ready for Inspection: Erich Hartmann, Bf109G-14, Ludwig Franzisket, Bf109G-6


#13 nmayhew

nmayhew

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 3,651 posts
  • Gender:Male
  • Location:Sissinghurst, Kent, England

Posted 02 March 2010 - 09:37 AM

nice extra pics

now, and i can't believe i didn't notice this before, but what's with the black diamonds instead of swastikas?
is that clever photo-shopping??

just wondered why that's all...





#14 blackbetty

blackbetty

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 4,429 posts
  • Gender:Male
  • Location:Austria

Posted 02 March 2010 - 09:45 AM

I./JG 27 was based there from 22.8.43 - 6.6.44. I believe the positioning there was primarily to defend against incursions by 15th AF into Southern Germany and Austria.

just found it in the net, apperently there was a bigger luftwaffe base there, no concrete runway, thats why there is nothing left
thanx

back after 20 years

DUE TO A HOSTING PROBLEM A LOT OF PICS OF MY BUILDTHREADS ARE GONE. ANYONE INTERESTED CAN REQUEST THESE VIA PM FROM ME


#15 dodgem37

dodgem37

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 7,815 posts
  • Gender:Male
  • Location:Silver Spring, Maryland USA

Posted 02 March 2010 - 10:10 AM

now, and i can't believe i didn't notice this before, but what's with the black diamonds instead of swastikas?
is that clever photo-shopping??


No, no photo-shopping. Painted white, tape masked, painted black.
As for black diamonds instead of swastikas, I choose not to have swastikas.

Sincerely,
Mark
