AIMS JU 88 G-6 1/32 conversion


  • Please log in to reply
63 replies to this topic

#1 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 16 December 2009 - 08:41 AM

Coming Soon 1/32 Ju 88 G-6 conversion

By the beginning of February I should have available an exciting new conversion set for the Revell 1/32 Ju 88. The set will enable you to make one of the various Ju 88 G-6 configurations with enough decals to do a second kit if you want a second conversion set cheaper minus the decals. I hope you enjoy looking at the giffs of the decal sheet currently being printed by Fantasy Printshop and the photo etch being presently done by PPD. The decal sheet is A4 size put will be cut in two for packaging, whilst the photo etch is A5 size. So what else is included?

Vacuformed
Fighter canopy with armoured windscreen
Mid-spine section for clear EZ-6 cover
Belly from nose to end of gun bay
Morgenstern cap

Brass
SN2 220 dipoles x5 (4x for front and 1x for rear)

Resin

Vertical stabilizer
Rudder
Extensions to horizontal stabilizers and elevators
Wing tips
Revised ailerons with proud trim tabs
Jumo 213 engines with spinners, VS 11 props and flame dampers
Under wing vents
Extended forward cowls
Standard nose
Berlin (long)
Morgenstern (covered plywood area)
MG 131 rear defence
MG 131 ammo bin
Fabric effect cartridge chute
Covered ammo belt feed
SN2 antlers
DF loop base
Upward firing cannon fabric boot
EZ-6 housing

Scratch building needed
Some panel lines will need scribed
Gear doors will need revised
Boxes to back of interior radar equipment will need fabricated for photo-etched faces.

All this comes with a price tag sadly and for those of you who understand the economics of getting this sort of set together will appreciate it when I say pre paid orders will be most welcome at this moment in time? Happy Christmas

John (AIMS)

Attached Files



#2 Alburymodeler

Alburymodeler

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 658 posts
  • Gender:Male
  • Location:Australia

Posted 16 December 2009 - 10:41 AM

Coming Soon 1/32 Ju 88 G-6 conversion

By the beginning of February I should have available an exciting new conversion set for the Revell 1/32 Ju 88. The set will enable you to make one of the various Ju 88 G-6 configurations with enough decals to do a second kit if you want a second conversion set cheaper minus the decals. I hope you enjoy looking at the giffs of the decal sheet currently being printed by Fantasy Printshop and the photo etch being presently done by PPD. The decal sheet is A4 size put will be cut in two for packaging, whilst the photo etch is A5 size. So what else is included?


Looks really good. What is the price likely to be?. If I have money in my Paypal account and I can afford it I will try to buy at least one. Two would be nice but not sure how far the budget will stretch,

Greg

#3 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 16 December 2009 - 12:02 PM

Hi Greg,
We are looking at 35.00 but if you want a 2nd set without decals and without the Berlin and Morgenstern then the 2nd set will be 25.00

Need the money before invoices start rolling in!

John

#4 dutik

dutik

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,126 posts
  • Gender:Male
  • Location:Germany

Posted 16 December 2009 - 01:53 PM

Sounds good. Even the price should be ok for that amount of stuff, espcially the large pieces of resin.
Only the etched dipoles are not that sound idea. Round parts should made round, not flat, or left off - just to qoute a common comment from PE reviews. And there are magnificent milled brass dipoles available from Schatton. But that was it for the negative comments. Well, I skipped the idea of building a Ju-88 for shelf place reasons, but for a nightfigther I would re-think that decision. Out, out, you crappy single-seaters! Hail to the multiseated King! :popcorn: I have to check my references - maybe it is possible to make a G-10 stretch-limo too, or a Mistel? Hmm, have to have look at the engine and cockpit layouts.

At the other hand is 35 GPB (plus s&h) something to be considered. So would it be possible to have a look at the engines instead of having blind orders? To correct a wing or a cockpit interior is within the range of most modellers (and we know that your large-scale interior was very fine), but shape and look of the engines is crucial for the overall impression of the plane.

With kind regards - dutik

#5 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 16 December 2009 - 02:15 PM

I would not use the etched dipoles myself but had to provide something - getting proper dipoles as well in the kit would just escalate the price beyond reason so that will have to be the modellers concern. At least with the etch we all have the measurements at hand to make our own if need be. I hope the price is not too low rather than too high from my costs point of view but that is my proplem. Engines are only half done - waiting on photo etched grillto finish prototype work - can post pics of all items as and when they have the final touches. Apart from finishing hte engine face I just need to finish sanding the new spinner shape and get the flame dampers ready. Come the end of Jan I expect the decals, vacforms and brass all to arrive and then I have bills, bills, bills! Why do I bother? I know I love this aircraft!

John

#6 Hans

Hans

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 823 posts
  • Gender:Male
  • Location:Near the coast, The Netherlands

Posted 16 December 2009 - 06:09 PM

Looks very good John, it was well worth waiting for :P . I was too lazy to do all that work myself. Will you also do the armoured seat for the pilot?

Cheers,

Hans

#7 dutik

dutik

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,126 posts
  • Gender:Male
  • Location:Germany

Posted 16 December 2009 - 06:27 PM

Why not think big?
You have the Jumo-213 nacelles and the canopy with the single armored rear gun position. If you make a plug for the left-off ventral gondola and a vacu nose shaped a la the solid nose from the C - voila, a Ju-88 S3/T-3. iirc you have one in your 72nd scale range, so you should have the references for the parts as well as the decals. A plug for the fuselage extension - G-10. Guess there are some other minor variations possible to offer a wider range of conversions. Hey, YOU are the expert :rofl: At the moment you are the only one offering a Jumo-213 conversion (lArsenal makes the Jumo 211 for the A-4). Just make a good use of your advantage :P

Regards - dutik

#8 Hans

Hans

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 823 posts
  • Gender:Male
  • Location:Near the coast, The Netherlands

Posted 16 December 2009 - 06:34 PM

Good thinking Dutik!

If John adds BMW engines to his range and an throws in an A-4 vertical tail as well you can make the R-1, R-2, G-1 and all sorts of Mistels. He has then almost completely cornered the market :P


Regards,

Hans

#9 Kagemusha

Kagemusha

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 7,061 posts
  • Gender:Male
  • Location:Mancunia

Posted 16 December 2009 - 08:23 PM

It'd be nice, and would no doubt help sales, to see the profiles of the aircraft featured, cheers!

#10 mattlow

mattlow

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 2,344 posts
  • Gender:Male
  • Location:Devon, England

Posted 16 December 2009 - 08:56 PM

John

I will definitely take one, maybe a second later. Contact me when you want the money.

Matt

#11 Alburymodeler

Alburymodeler

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 658 posts
  • Gender:Male
  • Location:Australia

Posted 16 December 2009 - 09:23 PM

Hi Greg,
We are looking at 35.00 but if you want a 2nd set without decals and without the Berlin and Morgenstern then the 2nd set will be 25.00

Need the money before invoices start rolling in!

John


Great John, prices sound very reasonable for what is offered. Please let me know when you are wanting some payments,

Thanks, Greg

#12 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 16 December 2009 - 11:15 PM

Thanks all of you for your thoughts and kind words - those wanting to help me out before the big bills roll in mid to late Jan please email me via my website and tell me what you want and where you live.

#13 nmayhew

nmayhew

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 3,325 posts
  • Gender:Male
  • Location:Sissinghurst, Kent, England

Posted 19 December 2009 - 03:37 PM

It'd be nice, and would no doubt help sales, to see the profiles of the aircraft featured, cheers!



yes this is great news for all ju88 lovers, but from a marketing perspective it's difficult to get things goiing without pictures

what an impatient bunch we are!!!!

Nick





#14 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 19 December 2009 - 08:01 PM

Here are some of the work on the instructions - not finished yet...

Attached Files



#15 Pastor John

Pastor John

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 536 posts
  • Gender:Male
  • Location:Kent, UK

Posted 19 December 2009 - 08:02 PM

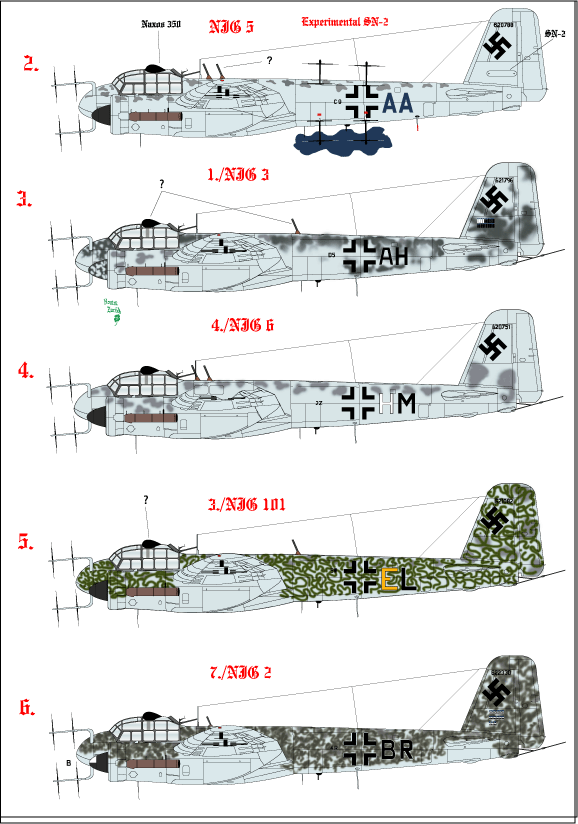

Page 2...

Attached Files
