FW 190 V16 alias FW 190 C

Started by fam43 , Sep 10 2009 07:03 AM

  • Please log in to reply
102 replies to this topic

#1 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:03 AM

Hi,
when I looked in my spare-parts box I discovered the remains left over from my TA and ME 209 builds plus some usefull things of an old FW 190 A Hasegawa kit. At the same time I read an article in a Flightmag about the illfaited FW 190 C. Why not use this leftovers to build it?
At first it was my intention to build the V30 with the exhaust driven supercharger under the belly, but I thought try the V-16 first the V30 won't run away.

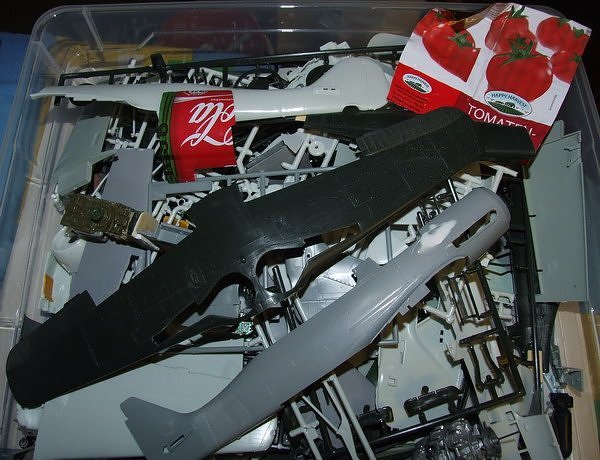

The sparebox:

Good bye happy modelling
yours

Michael

#2 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:13 AM

The kits which delivered parts+ a Daimler engine from the venerable Revell 109.



a prts list:

FW-190 A (oldtool Hasegawa)
-wings and rudders

FW-190 D (oldtool Revell)
-undercarriage and parts of the Wingroots

FW-190 D (Newtool Revell)
-fuselage and cockpit

BF 109G (oldtool Revell)
-engine
Good bye happy modelling
yours

Michael

#3 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:20 AM

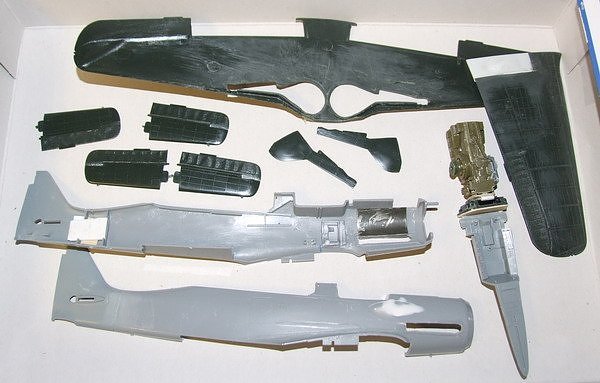

The main parts:


The most difficult work so far was outmilling the the undercarriage-well of the A-wing.
Good bye happy modelling
yours

Michael

#4 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:23 AM

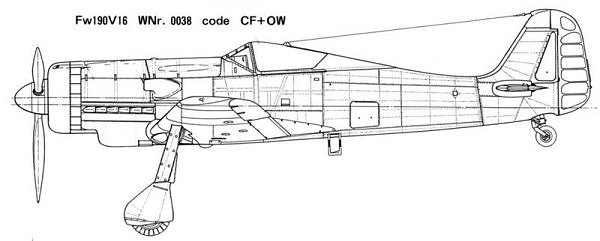

Now it's time to introduce the V-16:

"Model Art" No. 336 page 29

Good bye happy modelling
yours

Michael

#5 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:27 AM

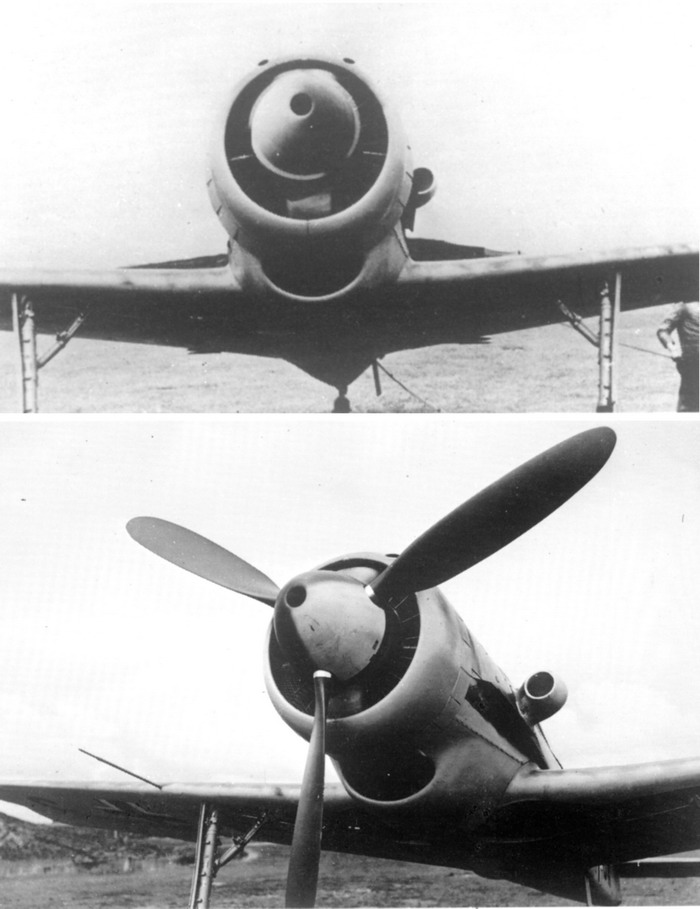

In the "Flugzeug Classicals" April 09 were these pics:

Good bye happy modelling
yours

Michael

#6 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 10 September 2009 - 07:34 AM

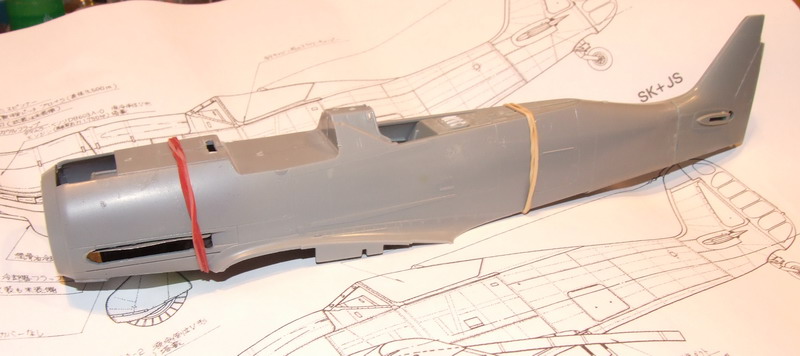

Backdating the tail of the 190 D.

Good bye happy modelling
yours

Michael

#7 LSP_Kevin

LSP_Kevin

    Senior Member

  • Administrator
  • 16,272 posts
  • Gender:Male
  • Location:Melbourne, Australia

Posted 10 September 2009 - 09:49 AM

Interesting project fam! You've certainly got a motley collection of parts there. Knowing your work, this is bound to be great!

Kev

Finished: Revell Dora | Hasegawa Emil | Revell Zero Rebuild | 21st Century C.202 | Tamiya A6M5 Zero | Hasegawa Avia S-92 | Hasegawa Fw 190D-11 | Matchbox Sea Venom | XS-Models Hughes H-1
In Progress: Hasegawa Fw 190S Conversion | Matchbox Spitfire 22/24 | Birdcage Corsair the Hard Way!
Shelf of Shame: Revell X-1 | Matchbox Emil

#8 Azgaron

Azgaron

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,791 posts
  • Gender:Male
  • Location:Sweden

Posted 10 September 2009 - 11:38 AM

Looks interesting!

Cheers,

Håkan

#9 Guest_Rigor_*

Guest_Rigor_*
  • Guests

Posted 10 September 2009 - 05:31 PM

wow very cool project!! :blink:

#10 JRutman

JRutman

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 3,491 posts
  • Gender:Male

Posted 10 September 2009 - 08:50 PM

You are very cool! It's great to model"outside of the box" and that's what this new project is!
JR

#11 theseeker

theseeker

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 1,414 posts
  • Gender:Male
  • Location:Close to Houston, TX

Posted 10 September 2009 - 09:02 PM

Looking forward to this!
The best revenge is living well!

On the bench:

1/32 WNW SE5a...almost done
1/32 TAM F-4E just started
assortment of figures

#12 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 11 September 2009 - 05:25 AM

Well I don't like expensive aftermarket products specially PE-parts.

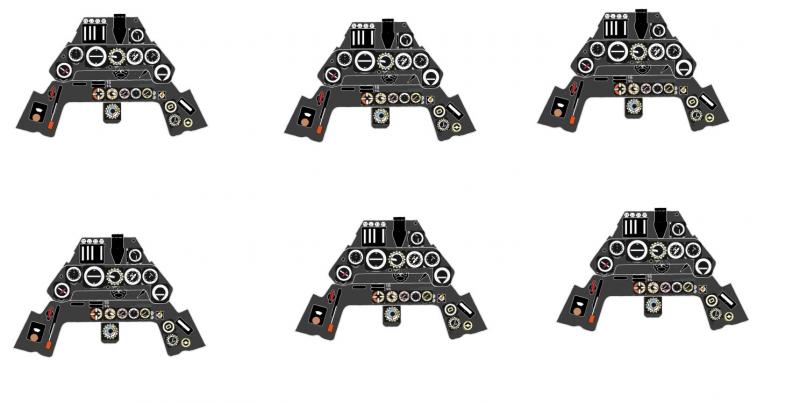

You can't seee much of the instrument panel of a FW even when the cockpit hood is open. So I decided to use my venerable Corel Draw and designed a panel which I printed on foto-paper and cemented it into the cockpit.

Good bye happy modelling
yours

Michael

#13 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 11 September 2009 - 05:30 AM

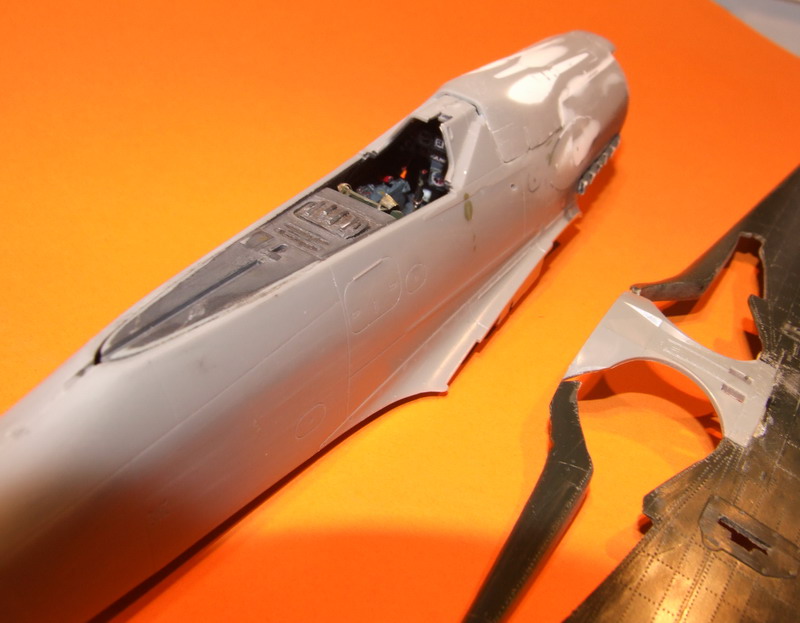

Off went the supercharger intake of the Jumo and the bulges of the cowl weapons. By the way, to my knowledge the V16 never carried any weapons during its life.

Good bye happy modelling
yours

Michael

#14 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 11 September 2009 - 05:32 AM

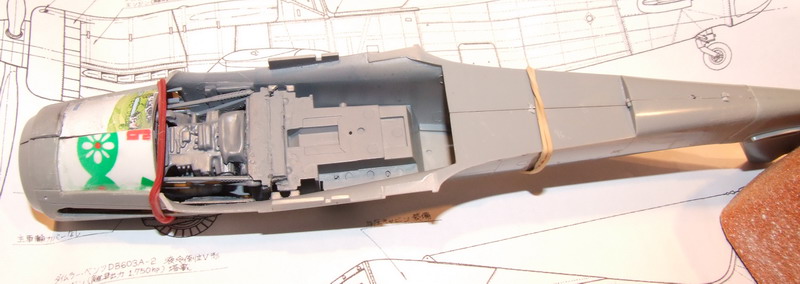

Next came a rudimentary replica of a Daimler engine (DB 603A)

Good bye happy modelling
yours

Michael

#15 fam43

fam43

    Senior Member

  • LSP_Members
  • PipPipPipPipPipPip
  • 687 posts
  • Gender:Male
  • Location:Baden-Württemberg Germany

Posted 11 September 2009 - 05:44 AM

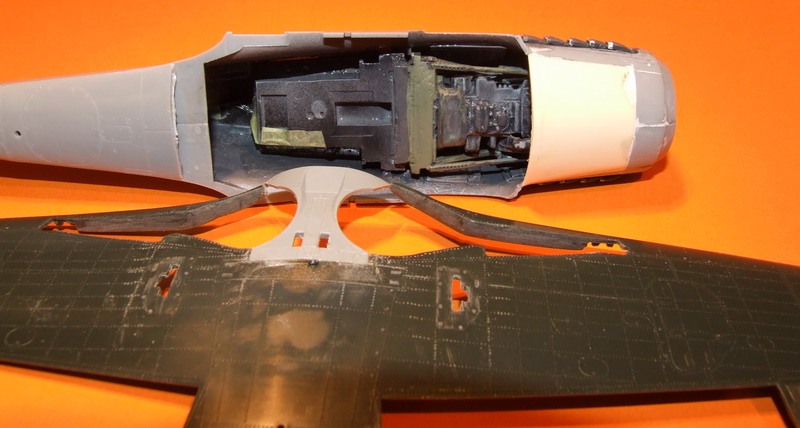

The modified wing and new lower cowl wih a little paint added:

Good bye happy modelling
yours

Michael
